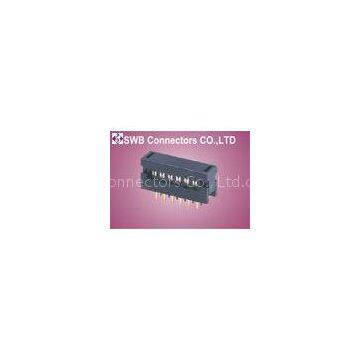

Wire to Board DIP Plug IDC Male Connector 10 pin - 64 pin 2.54mm Pitch
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wire to Board Female IDC Connector , 3.96mm Pitch Crimp Style Connector 9 pin
-
Microwave / Refrigerator Board to Board 1.27mm Connector Crimp Style
-
IDC 1.27 mm Pitch Single Row Connector Board to Board Crimp Style
-
Straight Orientation Male Board to Board Connectors 1.00mm 9 Pin ~ 51 Pin
-
Single Row Male Board to Board Connectors 2.54 mm Crimp Style
-
Automotive 3.70 mm Pitch LED Crimp Style Connector Board to Board
Product Details
| Brand Name | SWB | Place of Origin | China | |
| Model Number | 2542 Series |
Product Description
Certification:ISO9001/SGS/UL/RoHS/Reach
DIP Plug IDC Connector , Wire to Board Connectors 2.54mm Pitch
?Specifications:
|
Product Name |
DIP Plug Connector |
|
Product Series |
IDC Connector |
|
SWB Part Number |
2542HDV-X*XX-PTB |
|
Gender |
Male |
|
Pitch |
2.54mm |
|
No. of Rows |
2 |
|
No. of Contacts |
10~64 |
|
Orientation |
Straight |
|
Contact Material |
Brass |
|
Contact Plating |
Gold Flash On Contact,Tin On Tail |
|
Plastic Material |
PBT UL 94V-0 |
|
Plastic Color |
Black |
|
Current Rating |
1A AC/DC |
|
Voltage Rating |
500V AC/DC |
|
OperatingTemp. Range |
-25℃~+85℃ |
|
Contact Resistance |
20mΩ Max |
|
Insulation Resistance |
1000MΩ Min |
|
Withstanding Voltage |
1000V AC/minute |
|
Wire Range |
AWG#28 |
