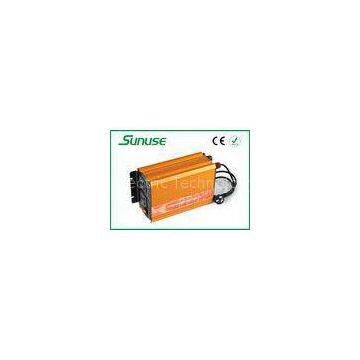

12v to 220v Modified sine wave Power Inverter With Charger , 5000w onlineups inverter

FOB Price

Negotiable / Kilogram

1 Kilogram(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunuse		Place of Origin	China
Model Number	SIM5000-C

Product Description

Delivery Time:3-7 working days
Certification:CE,ROHS

?5000w power inverter dc 12v ac 220v circuit diagram with charger ups online

Quick Detail:
?

1,?Modified sine wave
2,?Soft start
3, Pefect protection systerm
4, High efficiency

Specifications:

Model		? ? ? ?3000W	? ? ? ?4000W	? ? ? ?5000W
Ac Input	Ac voltage	100/110/120VAC or 220/230/240VAC
Frequency	50Hz/60Hz
Charge Output	Charge current	12V/28V
Charge voltage	7A
Charge mode	Equalize/Float
DC Input	DC Voltage	12V/24V
Voltage range	10-15VDC or 21-30VDC
No load current draw	＜0.8	＜0.9	＜0.8
Efficiency	＞85%
DC connection	Cables With Clips
Output	AC Voltage	100/110/120VAC or 220/230/240VAC
Continuous Power	3000W	4000W	5000W
Surge Power	6000W	8000W	10000W
Protection	Wave Form	Modified Sine Wave
Frequency	50Hz/60Hz
AC Regutlation	3%
Low Voltage Alarm	10DC±0.5V or 20.5DC±1V
Low Voltage Shut Down	9.5DC±0.5V or 19.5DC±1V
Overload	Shut Off Output
Enviroment	Over Voltage Shut Down	15.5V/30.5V
Over Thermal	Shut Off Output Automatically
Working Temperature	-10℃ to 50℃
Working Humidity	20%~90% No Condensation RH
Storage Temperature	-10℃ to 50℃
Package	Machine Size	409x165x85	409x165x85	605x165x85
Packing Size	520x238x145	520x238x145	637x238x145
Packing Mode	Carton Packaging
Other	Start	Soft Start
Cooling Ways	Intelligent Cooling Fan

Application:

Ideally suitable for Journeys, Camping, Tents, Boat Trip,?Working on the way and ? ? ? ? ? ? ?everywhere, where is no electricity !?

Simply connect with 12v/24v Battery as in a Car, Motorcycle, Camper or Boat and use 110v/?220v electrical appliances.

? ?It is well suitable for supplying power for your notebook, digital camera, ?video camera and other ? ? ? ? ? ? ? ?appliances when you travel on the vehicle, camp, boat and other outside activities.

???It can also be widely used in the districts with unstable power or supplied power by solar or wind ? ? ? ? ? ? ? ? energy sources.

? ?Besides, it supplies a stable power for household appliances, such as TV, computer, DVD, VCD, ? ? ? ? ? ? ? ?satellite receiver, printer
