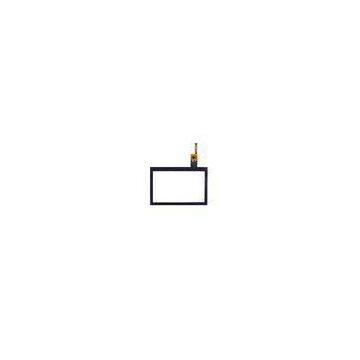

Customized 7" Tablet Touch Panel 0.7 mm Cover Glass Chip on FPC TS16949

Brand Name	SCT Touch		Place of Origin	China
Model Number	SCT-G70-003915F

Delivery Time:7-15 working days
Certification:ISO9001, ISO14001, TS16949, CE, FCC, ROHS

Customized 7\" Tablet Touch Panel 0.7 mm Cover Glass Chip on FPC ?TS16949

Quick Detail:

Cover Glass +OCA + ITO?Glass?+?FPC Surface Hardness: 6H Sensor ?Process: Printing IC: GT911?(COF) Total?Thickness:?1.55±0.1 mm Transmittance:?≥87%

Specification:

? Model No.	? ?SCT-G70-003915F
? Size	? ?7?inch
? View Area	? ?153.4 x 90.07 mm
? Outline Dimension	? ?185?x 124 mm
? Structure	? ?Cover Glass?+?Sensor?Glass
? Cover Glass	? ?0.7?mm
? Sensor Glass	? ?0.55 mm
? FPC	? ?Pitch=1.0?mm
? Surface Hardness	? ?6H
? Connection	? ?COF
? IC Model	? ?GT911
? Transmittance	? ?≥87%
? Operating temperature	? ?-20℃～70℃, ≤90%RH
? Storage temperature	? ?-30℃～80℃, ≤90%RH

Assembly?Precautions:

Do?not?exert?extra?force?to?touch?panel. Since?touch?panel?is?transparent?and?clear,make?sure?to?wear?fingerstall?or?glove?before?touching.Be?careful?of?your?hands?and?other?parts?from?injury?at?handling?by?glass?corners. When?handling,make?sure?to?hold?the?touch?panel?borders?not?center?parts?to?avoid?dirt?to?touch?panel.?Do?not?lift?touch?panel?by?tail?to?avoid?tail?loosen. When?installing?and?assembling,?do?not?lift?tail?with?heavy?force?to?avoid?tail?peeling?off?touch?panel. Do?not?stick?or?mount?other?parts?on?the?tail,?such?as?additional?film?or?metal?plate.?As?it?will?exert extra?force?to?tail?tip?and?cause?tail?loosen. Please?don\'t?pull?FPC?with?force?from?side?to?side,?because?the?FPC?tension?will?make?FPC?burst. If?there?is?air?groove?on?touch?panel,?when?design?product?structure,?make?sure?no?liquid?and?powder?near?the?air?groove. In?order?to?avoid?heavy?stress?to?touch?panel?surface,?make?sure?to?keep?0.2mm-0.5mm assembling?gap?between?touch?panel?and?case.

About Us

Main?Structure:

GG?structure

GG?structure?uses?cover?glass?plus?sensor?glass?solution,?harder?than?PG?structure,?high?transmittance?and?good?effect?for?anti-scratch.
?

?PG?structure

PG?structure?uses?one?PET?film?plus?sensor?glass?solution.?Mature?process?technology?greatly?reduces?the?failure?rate?and?cost.?It?has?the?same?level?weight?with?OGS?structure.
?

?OGS?structure

OGS?uses?one?glass?solution,?directly?form?ITO?conducting?film?in?the?protective?glass?and?use?the?sensor?technology.?It?has?the?advantage?of?the?simple?structure,?light,?thin?and?good?transmitting?etc.

Main?Material:

IC:?from?Taiwan,?America?etc. Film:?from?Japan,?Korea?etc.? Glass:?from?Japan,?America,?Germany?etc.

Application:

Smart?phone Car?navigation?(GPS) Tablet?PC?(MID) Education?electronics Ultra?book All?In?One?(AIO) Household?appliance Bank?system Smart?home?system Industrial?equipment

Environment?Condition:

? ? ? ? ? ? Item	? ? ? ? ? ? Value
? ?working?environment	? ?-20℃～70℃,?≤90%RH
? ?storage?environment	? ?-30℃～80℃,?≤90%RH

Mechanical?Characteristics:

? ? ? ? ? Item	? ? ? ? ? ? Value
? ?finger?contact?area	? ?Φ≥5mm
? ?transmittance	? ?≥87%

Electric?Characteristics:

? ? ? ? ?Item	? ? ? ?Value
? working?voltage	? ?DC2.8~3.3V
? insulation?resistance	? ?＞20M,?DC25V
? working?current	? ?12mA~14.5mA
? response?time	? ?≤16ms

Reliability?Condition:

? ? ? ?Item
