Integrated And Longlife 0.8% Sodium Hypochlorite Production Electrolysis

Integrated And Longlife 0.8% Sodium Hypochlorite Production Electrolysis

Principle:

CNJY-N series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power :

Technical parameters:

Product features:

> Available chlorine: 7.0-9.0g/L ;??????? > Power input: 380V, 50Hz ;

> Inlet water temperature : 5-27℃；??? > Inlet water pressure: 0.2-0.4Mpa；

> Salt consumption: 3.5kg/kg Cl2 ;?????? > Water consumption: 125L/kg Cl2； ???????

> Electrolytic liquid: 2.5~3% weak brine； > Content available CL: ≥8000ppm；

> Rated current: Determined according to the selected product model;

Work flow chart :

Automatic sodium hypochlorite generator system fully automatic production, contains the system

A, Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine

B, Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;

C, Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

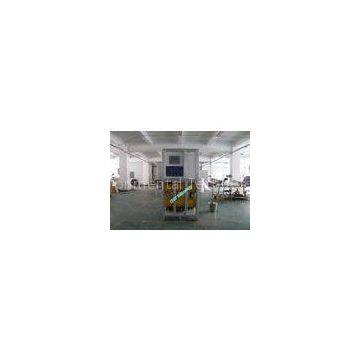

D, Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

E, Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

F, Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

G, Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output

Advantage on CNJY Products :

Workshop :
