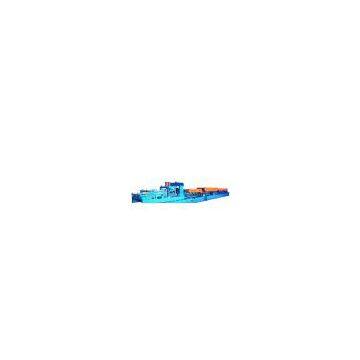

Sell Quick Change C & Z Purlin Roll Forming Machine

Place of Origin	China

Model No.:
Product Origin:China
Brand Name:Reliantt
Price Terms:FOB
Payment Terms:
Certification:
Description:Features: 1) With height and width adjustable (adjust time is about 5 minutes) a) Width adjust ranges: 100 - 300mm b) High adjust ranges: 45 - 85mm 2) Material: galvanized steel-Q235 3) Thickness: 1.5 / 3.0mm 4) Speed: 14.16m/min 5) Max. coil weight: 5MT 6) Coil dia: 500 - 700mm Line consists of following: 1) Uncoiler 2) Leveling machine and feeding 3) Hydraulic punching and cutting system 4) Punching and cutting die sets 5) Roll forming machine for C and Z-channel 6) Straightener 7) Run-out table 8) Electric control panel Specifications: 1) Uncoiler: a) Max. coil weight: 5MT b) Coil dia.: 500 - 700mm 2) Leveling machine and feeding: a) Roll pressing type b) Roller dia.: 100mm c) Upper 3pcs, lower 4pcs d) SCM4 chrome coating after high-frequency heat treatment 3) Hydraulic punching and cutting system: a) Energy-storage accelerate for quick punching and cutting b) Pump motor power: 14.5HP c) Pre-cutting and pre-punching system d) Punching & cutting die sets e) Material: SKD-11 4) Roll forming machine for Z-channel a) With height and width adjustable (adjust time is about 5 minutes only) b) Width adjust ranges: 140 - 300mm c) Width adjust ranges: 45 - 85mm d) Material thickness: 1.5 - 3.0mm e) Speed: 14 - 16m/min f) With 18 forming stations, molds materials: 9CR SI g) With high frequency grinding and heat treatment h) Shaft dia.: 70mm i) Main motor: 20 + 4HP (frequency inverter speed control) 5) Straightener: consists 4pcs roller (upper, lower, left and right) 6) Run-out table a) Length: 10m b) Type: roller type 7) Electric control panel a) 380V 60 Hz x 3 phase b) Automatic length measures and quantity counting c) PLC combine with HMI for easy operation
