Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | MC030S |
Product Description
Certification:TUV, CE & R&TTE ,SAA

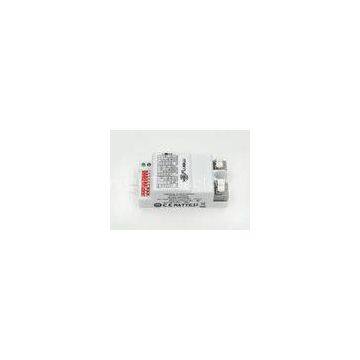

400W 5.8G Radar Detector ON-OFF Microwave Motion Sensor MC030S with TUV & CE & SAA and R&TTE approval
Description
1.?Automatic switching based on motion and ambient light level.
2.?With best cost effective design .
3.?Super compact size makes it suitable to fix within most luminaires.
4.?4-pole press-in terminal (L, N, N,L′),easy assembly.
5. Zero-crossing point operation helps protect the sensor against in-rush current..
6. 5.8GHz high frequency microwave(C-Band license-free operation)
7.?Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8.?MC030S is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.
Function:
ON-OFF function?
Detection Pattern:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
Inductive :400W,Resistive : 800W |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
12m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-20℃~60℃ |
|
Hold time |
5s / 30s / 90s / 3min / 20min / 30min |
|
Detection sensitivity |
10% / 25% / 50% / 75% / 100% |
|
Daylight sensor |
2lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Applications:
Stairwell, corridor, balcony, pathway, etc
