Home > Products > DC Motion Sensor > Gradually Dimming DC Motion Sensor MC011D , No Need Dimmable Led Driver

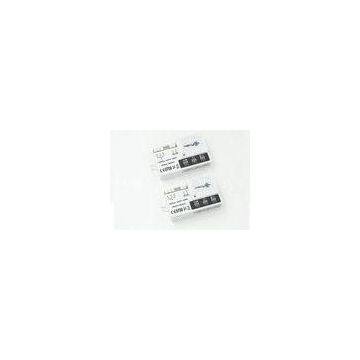

Gradually Dimming DC Motion Sensor MC011D , No Need Dimmable Led Driver
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
50W integrated sensor led driver on off and corridor function for tri-proof light and panel light
-
Integrated Sensor 3 In1 DIM LED Driver 220V 50W Easy Assembling
-
On / Off Integrated Sensor LED Driver 1500mA 65W 50 / 60Hz For Stairwell
-
Customized 12v DC Dry Contact Microwave Motion Sensor For Solar Energy Garden Lamp
-
Power Free Dry Contact Motion Sensor MC016D 5.8GHz 75MHz , ISM Wave Band
-
3 Pole Relay Dry Contact Motion Sensor For Stairwell Light , Hold Time 3min / 20min / 30min
Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | MC011D |
Product Description
Certification:CE , R&TTE
DC operating Microwave motion sensor MC011D for gradually dimming function, CE & R&TTE
Description
? Gradually dimming offer excellent user experience ? Wide detection area, range up to 16m in diameter ? Compact size, suitable to fix within most luminaries ? Economic solution to achieve dimming function ? No need dimmable led driver, simple constant current led driver is comparable ? Easy installation, workable for ceiling lamp, tri-proof light. ? Automatic switching based on motion and ambient light level ? 4-pole press-in terminal (L, N, N, L′), easy assembly ? Sensor data can be simply set via DIP switch ? The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.Function:
On-off function?
2- Step dimming function
Specifications:
|
Operating voltage |
9 - 40Vdc |
|
Rated load |
Max.40wLED light |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Operating current |
1A max |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation Temperature |
-20℃~50℃ |
|
Hold time |
10s/90s/3min/10min |
|
Detection sensitivity |
10％/50％/75％/100％ |
|
Dimming level |
10%/20%/30%/40% |
|
Dimming mode |
Step dimming |
|
Daylight Sensor |
10lux/50lux/Disable |
|
Life time |
50000 hours |
|
Guaranty |
5 years |
Applications:
Stairwell, Corridor, Balcony, Pathway, etc.
