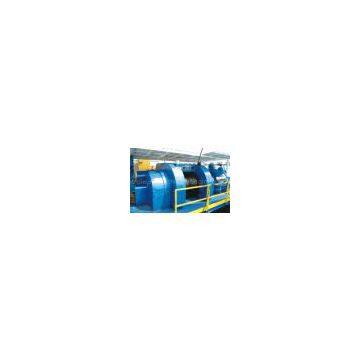

Drawworks
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | AC VF JC40DB-70DB |
Product Description
Features of AC VF drawworks:
All bearings are roller bearings. Shafts are made of alloy steel;
the drum is grooved;
automatic driller;
Main brake is hydraulic disc brake. The disc of brake is water-cooled or wind-cooled;
auxiliary brake is dynamic brake;
single shaft constructed;
Being transmitted through two-stage gear reducer and manually shift.
Gears are lubricated by thin oil.
|
Model |
JC40DB |
JC50DB |
JC70DB |
|
|
Nominal drilling depth m |
Ф114mm(41/2 in)DP |
2500-4000 |
3500-5000 |
4500-7000 |
|
Ф127mm(5 in)DP |
2000-3200 |
2800-4500 |
4000-6000 |
|
|
Rated power kW (hp) |
735 (1000 ) |
1100 (1500 ) |
1470 (2000 ) |
|
|
Qty. of motor ×rated power kW (hp) |
1 ×720 |
2 ×720 |
2 ×1100 |
|
|
Rated speed of motor r/min |
601 |
660 |
660 |
|
|
Dia. of wireline mm(in) |
32 (1 1/4 ) |
35 (1 3/8 ) |
38 (1 1/2 ) |
|
|
Max. fastline pull kN |
275 |
340 |
485 |
|
|
Main drum size (D×L) mm (in) |
640×1139 (25 1/4 ×44 7/8 ) |
685×1138 (27 ×44 7/8 ) |
770×1439 (30 ×53 1/2 ) |
|
|
Brake disc size (D×W) mm(in) |
1500×76 |
1600×76 |
1520×76 |
|
|
Power of automatic feeding motor kW (hp) |
45(60) |
45(60) |
45(60) |
|
|
Dimension(L×W×H) mm |
4230×3000 |
5500×3100 |
4570×3240 |
|
|
Weight kg |
18600 |
22500 |
30000 |
|
