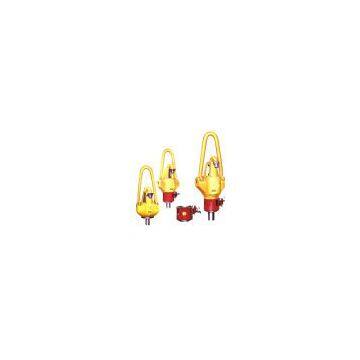

SWIVEL
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | SL135-450 |
Product Description
Features of swivel:
Built to API Spec 8A;
Standard bail and double pin (male) alloy sub are equipped;
Washpipe and packing are box structure, convenient to replace on drill floor, no need to disassemble rotary hose and gooseneck;
The through hole in the top of gooseneck provides passageway for well logging wireline.
|
Model |
SL135 |
SL225 |
SL450 |
|
|
Max. hook load kN |
1350 |
2250 |
4500 |
|
|
Max. rotary speed r/min |
300 |
300 |
300 |
|
|
Max. working pressure MPa (psi) |
35(5000) |
35(5000) |
35(5000) |
|
|
Clearance between bail and gooseneck mm (in) |
495(19 1/2) |
540 (21 1/4) |
549 (215/8) |
|
|
Center pipe dia. mm(in) |
64 (21/2) |
75 (3) |
75 (3) |
|
|
Center pipe upper thread
|
Connect to center pipe API in |
4 1/2 REG LH |
6 5/8 REG LH |
7 5/8 REG LH |
|
Center pipe lower thread
|
Connect to Kelly API in |
6 5/8 REG LH |
6 5/8 REG LH |
6 5/8 REG LH |
|
Gooseneck connection thread |
3″-8 |
4″-8 |
4″-8 |
|
|
Dimension(L ×W ×H) mm |
2505×758 ×840 |
2880×1026 ×1065 |
3015×1096 ×1065 |
|
|
Weight kg |
1345 |
2402 |
3310 |
|
|
Note: For above swivels, spinner (makeup and breakout) is optional. |
||||
