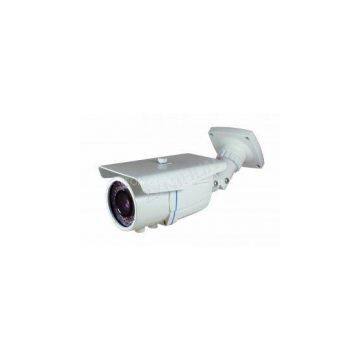

2.8- 12mm Manual Zoom Lens, Vandalproof Waterproof IR Bullet CCTV Camera With 420TVL CCD

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NEON		Place of Origin	China
Model Number	NIFD90NT

Delivery Time:1 Week
Certification:CE, FCC, RoHs

2.8- 12mm Manual Zoom Lens, Vandalproof Waterproof? IR Bullet CCTV Camera With 420TVL CCD

Weatherproof IR Camera

SONY/SHARP CCD optional (420TVL-700TVL)

IR LED :42pcs*￠5mm

IR Range: 40M

Standard Match 2.8-12mm Manual Zoom Lens

External lens adjusting

3-Axis Cable Built-in Bracket Suitable for Wall and Ceil Installing

Water Resistant Rate:IP66

Specifications
Module	CMOSHA	CMOSQA	SFE3QB	SFC3OQ	SL3OQA	SFP3Q
Image Sensor	1/3\" COLOR CMOS?	1/3\" COLOR CMOS	1/3\" COLOR SONY Super HAD?II?CCD	1/3\" COLOR SONY CMOS	1/3\" COLOR SONY Super HADⅡ CCD	1/3\" COLOR SONY Super HADⅡ CCD
Signal System	PAL/NTSC
Resolution	600TVL	700TVL	700TVL	1000TVL	600TVL	700TVL
Sensor??	PC3089	PC1099	P:?ICX811AK N:?ICX810AK	IMX138	P:?ICX639AK N:?ICX638AK	P:ICX663AK N:ICX662AK
Minimum Illumination?	0.01LUX	0.01LUX	0.05	0.01LUX	0.01LUX	0.05LUX??????? Sense-up :0.01/Lux
S/N?Ratio	48dB(min)(AGC?closed)	48dB(min)(AGC?closed)	48dB(min)(AGC?closed)	48dB(min)(AGC?closed)	48dB(min)(AGC?closed)	52dB(min)
Electronic Shutter Speed	1/50-1/60, 000sec.(PAL), 1/60-1/60, 000sec.(NTSC)
WDR	-	-	D-WDR	D-WDR	D-WDR	S-WDR
DNR	-	-	2D-DNR	3D-DNR	3D-DNR	3D-DNR
OSD	-	-	OSD	OSD	OSD	OSD
IR-Smart	-	-	On/Off	-	-	On/Off
?	?	?	?	?	?	?
White Balance	Auto White Balance	Auto White Balance/Manual White Balance/Auto Tracking White Balance
Gain Control	AUTO	Auto/Manual/Off
Back light Compensation?	ON	ON/OFF
Gamma Correction	0.45
Synchronization??	Internal
Video Output?	1.0Vp-p, 75Ω
Power Source	DC12V (9V ~ 15V)
Operating Temp.	-20℃~60℃ / 10% ~ 95%RH

?OEM/ODM available:

1).Silk print?logo?on?the?camera;

2).?Customized?camera?housing;

3).Customized?Color?box
