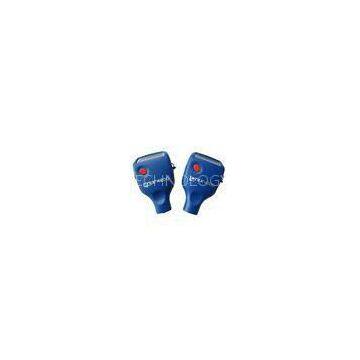

Non Magnetic / Magnetic Metals Automatic Switch on / off Qnix4500 Coating Thickness Gauge
- T/T L/C D/P D/A
- 7 days
You May Like
-
SADT Gloss Meter SGT60 for Paint, Coating , Printing , Ceramics
-
Quick Respond Automatical Brinell Hardness Testing With Optical Measuring System
-
High Accuracy Automatical Brinell Hardness Testing Machine With USB Power Supply
-
EMT220 Portable Vibration Meter External Probe,without Temperature-measuring Function
-
ST5900+ Ultrasonic Thickness Gauge 4 Digits LCD 0.1mm Resolution PT-5 Standard Probe
-
SA40EZ Miniaturized Ultrasonic Thickness Gauge 0.8mm - 225.0mm Pulse Echo With Dual Probe
Product Details
| Brand Name | Qnix | Place of Origin | China | |
| Model Number | Qnix 4500 |
Product Description
The QuaNix?4500 has been designed to meet the requirements of automotive and other painting applications.
The QuaNix?4500 measures over all metalls by just switching the mode from ferrous to non-ferrous or reverse. For those of you who only measure over steel or iron we have designed the QuaNix?4200.
Product Features
Execellent accuracy
One button only
Proven Hall Sensor Technology (and
eddy-current for QuaNix?4500)
One hand opperation
for all applications
Integrated sensors
without cable and connectors
Automatic switch on/off
Display in microns or mils
Acoustical signal
confirms measurement
|
Substrate Steel and iron |
Fe-probe (4200/4500) |
|
Non-magnetic Metals, e.g. Aluminium, Copper, Brass |
NFe-probe (4500) |
|
Measuring Range |
0 – 999 μm |
|
Accuracy |
(2 μm + 3 % *) (*of reading) |
|
Minimum Measuring Area |
10 x 10 mm |
|
Minimum Curvature |
5 mm convex25 mm concave |
|
Minimum Substrate Thickness |
Fe: 0, 2 mmNFe: 0, 05 mm |
|
Temperature Range |
0 – 60°C |
|
Display |
Digital (LCD) |
|
Probe |
One Point (integrated) |
|
Power Supply |
2 x 1, 5 V Mignon Battery (alkaline) |
|
Dimensions |
100 mm x 60 mm x 27 mm |
|
Weight |
ca. 110 g |
