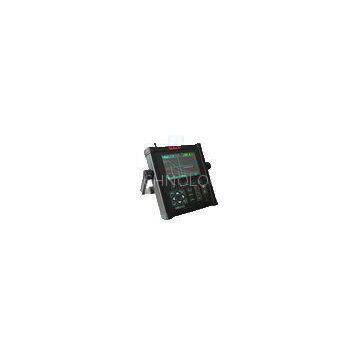

B Scan IP65 SUD10 Digital Ultrasonic Flaw Detector Automatic Gain, Peak Memory

B Scan IP65 SUD10 Digital Ultrasonic Flaw Detector Automatic Gain, Peak Memory

SUD10 digital ultrasonic flaw detector can be quick and easy, noninvasive, accurate manner workpiece internal

faults such as cracks, weld, stomatal, trachoma, inclusions, folded and so on.

Details:
Features: ?
· Automatic calibration of transducer Zero Offset and/or Velocity ；
· Automatic gain, Peak Hold and Peak Memory；
· Automatic display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, ф)；
· Automatic switch three staff gauge ((Depth d, level? p, distance s)；
· Ten independence setup, any criterion can be input freely, we can work in the scene without test block；
· Big memory of 300 A graph and 30000 thickness value.
· B scan；
· RS232 port, communication with pc is easy；
· The embeded software can be online updated；
· Li battery, continue working time up to 8 hours;
?

Other assistant function: ?
· Display freeze;
· Automatic echo degree;
· Angles and K-value; ?
· Lock and unlock function of system parameters;
· Dormancy and screen savers;? ?
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· High-speed capture and very low noise;
· DAC, AVG, B Scan;Solid metal housing (IP65);
· Automatically make video of test process and play;
· Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
· Powerful PC software and data can be exported to Excel;

Warranty:
One year warranty, battery not included.　

Standard package:

SUD main unit??????? 1
Straight transducer? 1
Angle transducer???? 1
Probe cable????????? 2
Charger Adapter????? 1　

Optional Accessories:
· PC software
· test block


?????? Title??????????????? ? ? ? ? ? ? Parameter????????? ? ? ? Title???????????????????????????????? Parameter ?
Measuring range(mm)?????? 2.5 ～? 10000? ? ? ? ?? Measurement mode???????? single, dual, THRU
Vertical linearity error??? ? ? ? ≤2.5%???????????????????? Reject?????????????????????????? 0-80% ?
Horizontal linearity error? ? ?? ≤0.1%??????????????????? Pulse shift(μs)? ? ? ? ? ???? -20 ～+3400 ?
Sensitivity margin?????????????? ≥60dB???????????????????? Zero(μs)??????????????????????? 0.0 ～? 99.99 ?
Dynamic scope?????????????? ?? ≥32dB???????????????????? Port type?????????? ? ? ? ? ? ? BNC ?
Resolution???????????????????????? ≥40dB???????????????????? Operating temperature???? -20～50 ?
Frequency range(MHz)???? 0.5 ～? 20??????????????? H×W×D(mm)?????????????????? 240×180×50 ?
Gain(dB)??????????????? ? ? ???? 0 ～? 110??????? ? ? ? ?? Weight(kg)?????????????????????? 2.2?
Velocity????????????????????????? 1000 ～? 13000??????? ?
