Non rotating Hop Dip Galvanized Compacted Wire Rope 6 x 26 ss wire rope

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

INCHTIGHT

Place of Origin

China

Product Description

Delivery Time:within 30 days
Certification:Lloyd’s/CCS/ABS/BV/DNV

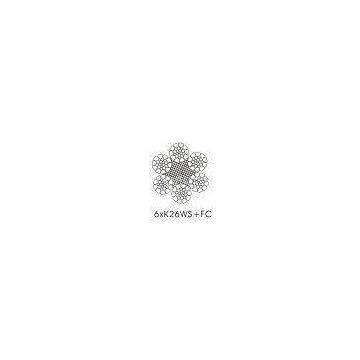

Non rotating Hop Dip Galvanized Compacted Wire Rope 6 x 26 ss wire rope

About Flattened Wire Rope With Compacted Strands
Compacted wire rope?is composed of several wire strands which have gone through crimping wheels to compress and shape the individual wires to form compacted structures or reduce diameters before laying strands around the core. Taking advantage of the compacting process, the surface of outer wires is flattened and the contact area between strands is increased.
Feature:

Increased wear resistance of wires. Smoother bearing surface than traditional wire ropes. Increased tensile strength and lateral compression strength. Increase metal cross sectional area. Decreased blocks groove wearing. Decreased construction stretch. Less contact pressure onto the sheaves and drums. Better fatigue life and low deformation. Capable to withstand high load and sock load. Easy to handle.

Application:

Whip hoist rope. Pillar crane rope. Deck crane rope. Offshore crane rope. Other various hoist ropes. Mining ropes. Machinery. Marine fishing applications.

Specifications

Nominal Diameter (D/mm)	Approx Weight (kg/100m)	Nominal Tensile Strength of Rope (Mpa)
1570	1670	1770	1870
Minimum Breaking Load of Rope (KN)
FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
12	61.2	68.7	84.3	92.7	89.7	98.6	95.1	105	100	110
14	83.3	93.5	115	126	122	134	129	142	137	150
16	109	122	150	165	159	175	169	186	179	196
18	138	155	190	209	202	222	214	235	226	248
20	170	191	234	257	249	274	264	290	279	307
22	206	231	283	312	301	331	320	351	338	371
24	245	275	337	371	359	394	380	418	402	442
26	287	322	396	435	421	463	446	491	472	518
28	333	37
