Home > Products > Pulveriser Machine > 200-1800 Mesh10L,50L,100L Crushing and Vibrating Mill Water Cooling Pulveriser Machine, WFM Series C

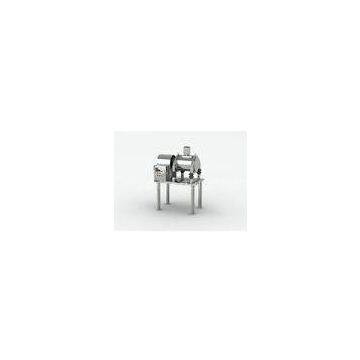

200-1800 Mesh10L,50L,100L Crushing and Vibrating Mill Water Cooling Pulveriser Machine, WFM Series C
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
20-200 Mesh Herbs Medicine Dust Collecting YF Pulverizer Machine With Air Cooling, Screen-free For F
-
60-200 Mesh 550kg-2800KG Dust-collecting Pulverizer Machine for Fiber or Grease Materials Crushing
-
60-450 Mesh Cyclone Pulse Dust-collecting Fine Pulverizer Machine for Pharmaceutical, Chemical Mater
-
Model-purpose WF Series Cyclone Pulse Dust-collecting Fine Pulverizer For Magnetic Material, Powder
-
20-120 Mesh 4kw-37kw Model WF Series Fine Pulveriser Machine With Crushing, Dust-collecting For Phar
-
WF 90kg-1200kg 80-400 Mesh Series Dust Collecting Fine Pulverizer For Pharmaceutical, Chemical
Product Details
| Brand Name | Hongda | Place of Origin | China | |
| Model Number | WFM Series |
Product Description
200-1800 Mesh10L,50L,100L Crushing and Vibrating Mill Water Cooling Pulveriser Machine, WFM Series Crushing
Main Application :
Used for super fine crushing of fiber material in such trades as pharmaceutic, chemical and foodstuff etc., Including glossy ganoderma, liquorice, shrimp shell and every kind of bone and plant fiber etc., With the crushing fineness reaching micron grade, this machine has reached the international advanced level.
Working Principle:
This machine is a horizontal vibrating mill. The material is fed into the crushing chamber through a hopper and crushed through collision and grinding with grinding barin side the chamber under the effect of vibration. Furthermore, it is equipped with water cooling unit to control the temperature inside the crushing chamber. Designed according to \"GMP\" standard and wholly made of stainless, this equipment can be operated under full close conditions without dust flying and environmental pollution.
Technical Parameters :?
| Model | Working volume? | Handing capacity | Crushing Fineness | Cooling type | Power | overall dimension | weight |
|---|---|---|---|---|---|---|---|
| WFM-10 | 10L | 2-2.5kg/h | 200-1800mesh | water cooling? | 1.5kw | 1200*800*1400mm | 580kg |
| WFM-50 | 50L | 10-30kg/h | 200-1800mesh | water cooling? | 7.5kw | 1700*900*1700mm | 1500kg |
| WFM-100 | 100L | 20-60kg/h | 200-1800mesh | water cooling? | 11kw | 2850*1200*1800mm | 2800kg |
Contact Us
- Jiangyin HongdaPowderEquipment Co.,Ltd,
- Contact nameMr. Johnson Sun Chat Now
- Phone86-0510-86237735
- AddressNo. 68, Jincheng Road, Zhouzhuang Town, Jiangyin, Jiangyinsu, China, Rizhao, Shandong
