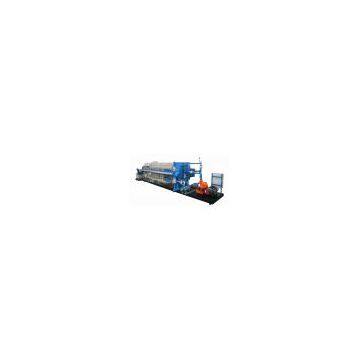

Automatic program-controlled high pressure recessed filter press

Detailed Product Description
Jingjin Automatic program-controlled high pressure recessed filter press has such features as follows:
1. wholly Automatic program-controlled.It can be working unattendedly.
2.Adopt upper washing device, with few actions and synchronous with auto plate shifting?machine.The washing cycles can be set according to requirements(can be regulated on site)
3.JINGJIN plate is made of TPE elastomer, fiber glass, and Polypropylene .It have the advantage of flexibility, toughness, rigidity. After the process of the CNC machining center, the flatness of the filter plate is lower than 25μm which make sure excellent sealing when pressing, and without any leakage when feeding.The filtration speed improved 20%, density and intensity, anti-fatigue ,anti-aging speed improved one times
4.JINGJIN plate is comply with Germany DIN7129 standard , completely in common with the European Amerian products.
5.Hydraulic cylinder is made by 27SIMn seamless steel pipe. Their precision can up to level of IT8
6. Pistons are made by steel 45 and plated with 0.06 chromium after surface processing with feature of high hardness, anti-wearing, long life-span.
7. The control part adopts system design concept, and adds auto running and check function.the system will always check whether the executive components is in normal state,or it will alarm on the display screen.It reserves DCS remote interface;thus realized remote monitoring and operation.
8. The main beams is made of?high quality carbon steel, being characterized by pull resistance, flexural resistance, high intensity and good toughness.
9.We have a production line for manufacturing filtration cloth in order that we can offer customers? with all kinds of clothes. our company also equipped with testing facility that can perform the filtration testing for customers free of charge in order that we can select the most suitable filtration cloth for customers.
10. AUTOmatic drip tray open&close.
