3kw Hydraulic Tee Bar Roll Forming Equipment with 4T Load-bearing for Construction Trades

3kw Hydraulic Tee Bar Roll Forming Equipment with 4T Load-bearing for Construction Trades

Description:

This equipment is a specialized machine set for the T-bar cold roll forming machine. It is designed and produced according to the requirements of our customers. It is belong to non-standard product.

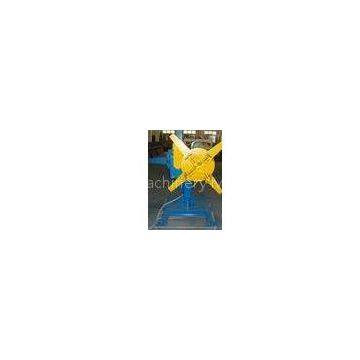

The first step is to put raw material on a cart, the cart will lift roll material up to the rack automatically. Hydraulic spading feeds the material into straightener, and enter into main machine. Die of main machine will progressively form to reach desired dimensions. Straightening device will help to eliminate internal stress to ensure flatness of products. Cutter will cut a intented length. Finally, the finished products will be moved away from the receiving platform.

Applications:

It?is?used?for?Construction?Tradess.

Specifications:

1.Leak?frame?load-bearing:4T

2.?Rack:?welding?with?300H?steel

3.?The?form?of?forming?machine?guiding?filling:?side?skip

4.The?form?of?forming?machine:?gearbox??drive?with?wallboard?type

5.?Diameter?of?Shaft?is:?72mm

6.?Forming?Speed:?8m/min

9.?Number?of?tracks:?13?tracks

10.?Roller?material:?Gcr15

11?Hydraulic?station?power:?3kw

12?Hydraulic?station?oil?pump:?gearpump

13?Cutting?type:?hydraulic?cut

14?Forming?Cutting?blade:?Cr12Mov

15?Heat?treatment?on?cutting?blade:?HRC58°-60°

16?Thickness?of?coil?sheet:?0.8-2.0mm

17?Coil?width?of?material:?1000mm

18?Index?error?of?length:?±1mm

19?Controlling?system:?PLC

20?Voltage:?380V?3phase?60?HZ?or?at?buyer’s?requirement

Material?of?main?equipment:

Roller?material:?high?grade?NO.45?forged?steel, ?plated?hard?chrome?on?the?surface?of??roller?with?thickness?0.05mm.

Active?shaft?material:?high?grade?NO.45?carbon?wrought?steel?at?diameter?72mm.

Cutting?blade:?Cr12?mould?steel?with?quenched?treatment.

Competitive?Advantage:

1.Automatic?roll?forming?machine

2.High?quality
3.Factory?direct?price
4.Design?by?COPRA@?software?from?Germany

5.On?time?delivery

6.Good?service
