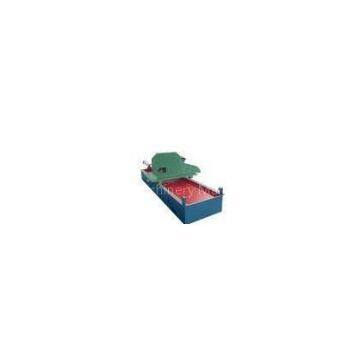

Cold Panel Roof Roller Forming Machine with Hydraulic Cutter 45# Steel 5.5kW Main Motor

Cold Panel Roof Roller Forming Machine with Hydraulic Cutter 45# Steel 5.5kW Main Motor

Description:

This equipment is a specialized machine set for the roof cold roll forming machine. It is designed and produced according to the requirements of our customers. It is belong to non-standard product.

The first step is to put raw material on a cart, the cart will lift roll material up to the rack automatically. Hydraulic spading feeds the material into straightener, and enter into main machine. Die of main machine will progressively form to reach desired dimensions. Straightening device will help to eliminate internal stress to ensure flatness of products. Cutter will cut a intented length. Finally, the finished products will be moved away from the receiving platform.

Applications:

It?used?for?building?trades.

Specifications:

1.?Material?of?pressure?plate:?color?plate, ?thickness:?0.2-0.8mm, ?unfolded?width?about:?1250mm

2.?Forming?speed:?0-10m/min

3.?Forming?station:?11

4.?Material?of?roll:?45#?high?quality?steel?hard?chrome?plating

5.?Material?of?principal?axis:?45#?high?quality?round?steel, ?Diameter:?φ70

6.?Material?of?chain?wheel:?45#, ?18?teeth, ?16A?chain

7.?Rack:?350X175?H-beam?welding, ?panel-type?structure, ?and?6211?high-quality?bearings

8.?Main?motor?power:?5.5KW, ?cycloid?pin?gear?speed?reducer, ?frequency?conversion?velocity?modulation

9.?Installation?dimension?about:?(L*W*H):?7.5*1.7*1.4m

10.?Use?computer?to?control?the?length?of?the?product, ?hydraulic?cutter

11.?Material?of?blade:?Cr12, ?quenching?treatment

12.?Hydraulic?station?power:?4KW

Competitive?Advantage:

1.Automatic?roll?forming?machine

2.High?quality
3.Factory?direct?price
4.Design?by?COPRA@?software?from?Germany

5.On?time?delivery

6.Good?service
