Micro Waterproof Stainless Steel Load Cell Force Transducer , High Precision
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Small Tension Compression Load Cell , Stainless Steel Load Sensor 50kg 100kg
-
Low Profile Compact 20kg Testing Strain Gauge Load Cell Compression Type
-
Small Hopper Shear Beam Compression Load Cell Strain Gauge Of Alloy Steel
-
Custom Low Profile Shear Beam Load Cell Transducer Techniques 100kg To 10t
-
Tension And Compression Column Type Load Cell For Truck Scale
-
Portable Transducer S-type Load Cells For Platform / Silo / Scale
Product Details
Brand Name | tecsis | Place of Origin | China | |
Model Number | F2811 |
Product Description

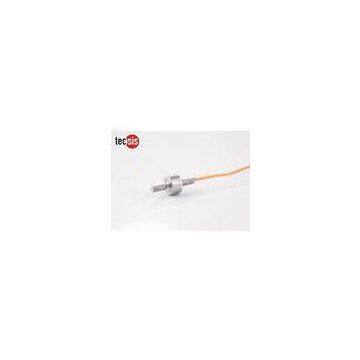

Micro Waterproof Stainless Steel Load Cell Force Transducer , High Precision
Features :
Model:F2811 Small size, easy to use Made of?stainless steel Capacity:10kg~500kg Diameter:13mm Tension and compression load cell High comprehensive precision, high stability Simple structure, easy?to?install?Description:
F2811 Force transducer is available in the capacities 10kg to 500kg.
Its structure is very delicate, the diameter is 13mm, the height is 33mm, this makes it easy?to?mount.
There are threads on both sides, so it is to install.
The protection class of F2811 is IP66, which has the function of waterproof and moisture-proof, so it is available for the humid environment.
It is made of stainless steel, good appearance.
F2811 Force transducer can be used single, it can be used for the small space or limited environment (if the output is rationalized). single load cell can be matched with weighing indicator, converting what you want to.
As a force transducer, it is suitable for a wide range of applications including testing or weighing systems, for example, the weighing systems of material testing machines and Dynamometers.
Used for key and elasticity test of Computers,mobiles etc.
Other measuring devices which need undemanding precision requirements.
Suitable for underwater small scale force measurement.
Applications:
Used for key and elasticity test of Computers,mobiles etc.?Other measuring devices which need undemanding precision requirements.?Suitable for underwater small scale force measurement.
Technical parameters:
Specifications |
Technique |
Rated output |
1.0±20%mV/V |
Zero balance |
±5% F.S. |
Non-linearity |
1% F.S. |
Hysteresis |
0.5% F.S. |
Repeatability |
0.5% F.S. |
Creep (30min) |
0.1% F.S. |
Temp. effect on output |
0.05% F.S. / 10oC |
Temp. effect on zero |
0.05% F.S. / 10oC |
Input impedance |
350±30Ω |
Output impedance |
350±5Ω |
Insulation |
≥2000MΩ |
Recommended excitation |
5~10V |
Maximum excitation |
15V |
Compensated temp. range |
- 10~60oC |
Operation temp. range |
- 20~80oC |
Safe overload |
120% F.S. |
Ultimate overload |
200% F.S. |
Cable size |
1500 mm |
Protection class |
IP66 |
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Schematic Wiring Diagram :
