Home > Products > Tension Compression Load Cell > Mini Stainless Steel Tension Compression Load Cell For Hopper Scale 5N To 2000N

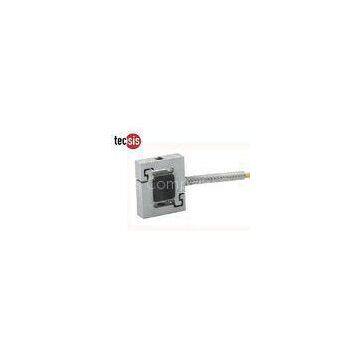

Mini Stainless Steel Tension Compression Load Cell For Hopper Scale 5N To 2000N

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	tecsis		Place of Origin	China
Model Number	F2808

Product Description

Delivery Time:Stock product:3~5 working days , No stock:10~35 days

Mini?Stainless?Steel?Tension?Compression?Load?Cell?For?Hopper?Scale

Features :

Model:F2808 Tension and compression load cell High comprehensive precision, high stability Simple structure, easy?to?install? Small size, easy to use Made of?stainless steel Capacity:5N~2000N

Description:

F2808?has compact structure, simple to install.

With strain gauge technology.

It can support compression and tension.

With the miniature size, it can be used in the limited space.?

Due to the stainless steel and the small size, the safe overload is 150% and?the ultimate overload can be 300%.

There is a thermoplastic pipe on the cable, it is an adjustable resistence. We need to install this as the size of the load cell is very small.

The capacity is 5N to 2000N, it can measure the force of?pull and push dynamometer,?hopper scale and industrial measuring?systems.

Applications:

Mainly used for pull and push dynamometer,?hopper scale and industrial measuring?systems.

Technical parameters:

Specifications	Technique
Rated output	2.0±10%mV/V
Zero balance	±2% F.S.
Non-linearity	0.15% F.S.
Hysteresis	0.05% F.S.
Repeatability	0.05% F.S.
Creep (30min)	0.05% F.S.
Temp. effect on output	0.05% F.S. / 10oC
Temp. effect on zero	0.05% F.S. / 10oC
Input impedance	350±30Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/ 100VDC
Recommended excitation	5V
Maximum excitation	15V
Compensated temp. range	- 10~60oC
Operation temp. range	- 20~80oC
Safe overload	150% F.S.
Ultimate overload	300% F.S.
Cable size	?2×1500 mm
Protection class	IP66
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);

Size and capacity:

Schematic Wiring Diagram :
