Home > Products > Car Reverse Parking System > Waterproof HONDA Crv / Fit / Odyssey Car Reverse Parking System With High Fefinition CMOS Sensor

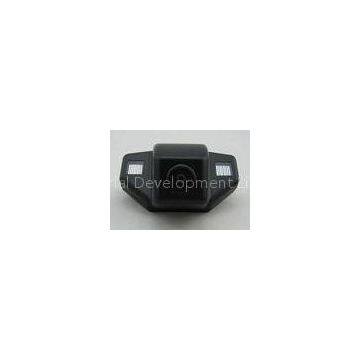

Waterproof HONDA Crv / Fit / Odyssey Car Reverse Parking System With High Fefinition CMOS Sensor

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Bexense		Place of Origin	China
Model Number	MA-0688

Product Description

Delivery Time:Depend on the order quantity, normally is 10 days
Certification:CE/ROHS/FCC/E-MAK

Specifications:

Mount Way	Replace?The Original License Plate Lamp
Image Sensor	Color CMOS
TV System	NTSC/PAL
Effective Pixels	628 x 586
Horizontal Resolution	480 TVL
Sensing Area	4.08mmx3.102mm
Shutter Speed	1/60
Minimum Iumination	0.1-0.5 Lux/F = 1.2(O Lux with IR on)
Video Output	RCA Connector;1.0cp-p,75
Power Supply	12V
Operating Temperature	-20℃-90℃ RH 95% Max
Storage Temperature	-40℃-80℃ RH 95% Max
Lens Angle	Max. 170°
Waterproof	IP68

Accessories

Power Cable: 1m

Video Cable: 5m

Screws/Nuts(for bracket mount)

Description:

MA0688 this car specific camera for?HONDA Crv/Fit/Odyssey? with smart size design is installed for replacing the original license plate lamp, it is easy and makes the camera is original OEM style. The camera is with 3rd generation high definition CMOS sensor, that makes the camera picture more sharpness and colorful image. And camera with the distance scale line for drivers’ reference, and with wide viewing angle & night vision& water proof. The camera with 2?IR LED that makes the night vision would be auto switch when in the Dark light surroundings.

Water Proof:

With IP68 water proof, and weather resistant, that makes you can use in any weather conditions and keep the quality.

Installation Location:

First, take down the car battery’s power supply line and keep it away from electrode avoid cause an accident. Take down the license plate lamp. Get the camera’s lines across the license plate lamp original position. Fix the camera with the fastener or screw. Take the camera’s power line connect with the backup light’s power line. Take the camera’s signal line connect with one side of the signal extension line. Take the other side of the signal extension line connect with the monitor’s input. Check if all lines are correct connected and arranged. Recover the car battery’s using then start the car the hang reverse gear, the reverse image will appear on the monitor’s screen. Cover the car trunk.

The Matters Needing Attention:

Can’t use the electric vehicle power supply connect with battery power supply in order to avoid power supply is unstable. Must not rely on the car rearview camera , it is a auxiliary tool. We must be carefully when reversing.

Applications:

For HONDA Crv/Fit/Odyssey.

Competitive Advantage:

High-definition, Night Vision, Waterproof, Colorful CMOS sensor

?Warranty: 12 months
