170 Degree Lens Car Backup Camera Systems For 2009 HONDA Crv / Odyssey / Fit / Crosstour
- T/T L/C D/P D/A
- 7 days
You May Like
-
TOYOTA 2009 Reiz Car Backup Camera Systems with High Definition CMOS Sensor
-
HONDA Accord / City Car Backup Camera Systems , RV Rear View Camera System
-
Night Vision Car Backup Camera Systems For 2009-2010 TOYOTA Corolla / Vios
-
VOLKSWAGEN Passat / 2009-2010 Jetta Car Reverse Parking System Mount on License Plate
-
Wired Automobile Reverse Camera System For 2009 VOLKSWAGEN Passat
-
CMD Image Sensor Rear View Universal Backup Camera Embedded Mounted
Product Details
| Brand Name | Bexense | Place of Origin | China | |
| Model Number | MA-0288 |
Product Description
Certification:CE/ROHS/FCC/E-MAK
Specifications:
|
Mount Way |
Replace?The Original License Plate Lamp |
|
Image Sensor |
Color CMOS |
|
TV System |
NTSC/PAL |
|
Effective Pixels |
628 x 586 |
|
Horizontal Resolution |
480 TVL |
|
Sensing Area |
4.08mmx3.102mm |
|
Shutter Speed |
1/60 |
|
Minimum Iumination |
0.1-0.5 Lux/F = 1.2(O Lux with IR on) |
|
Video Output |
RCA Connector;1.0cp-p,75 |
|
Power Supply |
12V |
|
Operating Temperature |
-20℃-90℃ RH 95% Max |
|
Storage Temperature |
-40℃-80℃ RH 95% Max |
|
Lens Angle |
Max. 170° |
|
Waterproof |
IP68 |
Accessories
Power Cable: 1m
Video Cable: 5m
Screws/Nuts(for bracket mount)
Description:

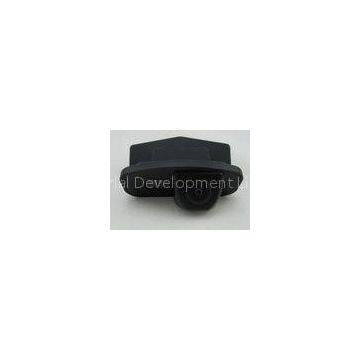

MA0288 this car specific camera for 2009 HONDA Crv/Odyssey/The New Fit/Crosstour with smart size design is installed for replacing the original license plate lamp, it is easy and makes the camera is original OEM style. The camera is with 3rd generation high definition CMOS sensor, that makes the camera picture more sharpness and colorful image. And camera with the distance scale line for drivers’ reference, and with wide viewing angle & night vision& water proof. The camera with 1 IR LED that makes the night vision would be auto switch when in the Dark light surroundings.
Water Proof:
With IP68 water proof, and weather resistant, that makes you can use in any weather conditions and keep the quality.
Installation Location:
First, take down the car battery’s power supply line and keep it away from electrode avoid cause an accident. Take down the license plate lamp. Get the camera’s lines across the license plate lamp original position. Fix the camera with the fastener or screw. Take the camera’s power line connect with the backup light’s power line. Take the camera’s signal line connect with one side of the signal extension line. Take the other side of the signal extension line connect with the monitor’s input. Check if all lines are correct connected and arranged. Recover the car battery’s using then start the car the hang reverse gear, the reverse image will appear on the monitor’s screen. Cover the car trunk.The Matters Needing Attention:
Can’t use the electric vehicle power supply connect with battery power supply in order to avoid power supply is unstable. Must not rely on the car rearview camera , it is a auxiliary tool. We must be carefully when reversing.Applications:
For 2009 HONDA Crv/Odyssey/The New Fit/Crosstour.
Competitive Advantage:
High-definition, Night Vision, Waterproof, Colorful CMOS sensor
?Warranty: 12 months
