HDL-74X30IR UV IR Light Illumination Machine Vision , infrared light sources 940nm
- T/T L/C D/P D/A
- 7 days
You May Like
-
LAR- 100 LED Ring Lighting for introduction to machine vision
-
Large LED Ring Light Low Angle for Machine Vision Inspection , Machine Vision System
-
Diffusible Ring LED Lights Machine Vision Inspection Welding Spots
-
Diffusion Plate Machine Vision Source Array LED Inspection Backlight
-
Aluminum Alloy Machine Vision Illumination LED Flat Backlights from Side
-
Industrial Machine Vision Backlight Side Flat Lights with Surface Inspection
Product Details
| Brand Name | Wordop | Place of Origin | China | |
| Model Number | HDL-74X30IR |
Product Description
Certification:CE, RoHS

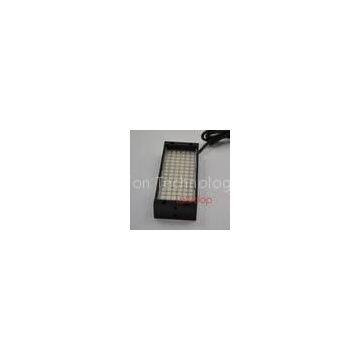

?HDL-74X30IR ?UV IR Light Illumination Machine Vision , infrared light sources 940nm
Product Features
◆ HDL-74X30IR generates high transmittance IR ligth for prolong view field.
◆?Optional IR wavelength:850nm/940nm.
◆?Better to work with near-infrared sensitive CCD camera
◆?Suit for inspecting characteristics ?inside of the product ?through low dense material.
◆?Working with infrared filter in high brightness environment?to prevent disperse light.
|
Color(wavelength) |
Red:620-630nm |
Green:520-530nm |
Blue:460-475nm |
|
White color temperature:6000-7500K |
InfraRed:850/940nm |
UV:365/385nm |
|
|
Operating environment(Indoor) |
temperature:0~40℃ Humidity:20% to 85% RH(with no condensation) |
||
|
Life time |
White: 30,000hrs, Red: 60,000hrs(Depends on the operating environment, not a guarantee.) |
||
|
Compatible Control Unit |
PS/PS2 Analog Controller, PD Digital Controller, PBT Strobe Controller. |
||
|
Optional Accessories |
1.Diffusion plate, Polarizing plate. |
||
|
2.Lens attachment ring. |
|||
|
3.DC extension cable:1m/2m/3m |
|||
|
Certificate |
Wordop company have gotten?CE, RoHS. |
||
|
Warranty |
One year product warranty time, free technical support |
||
|
Lights development |
Provide design and development service according to individual needs of customers. Get?the best image . |
||
?
?
Product Lineup ?Table
| Series | Model | Color | Voltage/Power |
| HDR Infrared Ring Lights | HDR-50IR* | Infrared | 24V/1.6W |
| HDR-70IR* | Infrared | 24V/2.7W | |
| HDR-90IR* | Infrared | 24V/4.5W | |
| LAR Low Angle Infrared Ring Lights | LAR-74IR* | Infrared | 24V/5.7W |
| LAR-132IR* | Infrared | 24V/16W | |
| FQ Infrared Flat Lights | FQ-50X50IR* | Infrared | 24V/12W |
| FQ-100X100IR* | Infrared | 24V/21W | |
| CO Infrared Coaxial Lights | COSQ-40IR* | Infrared | 24V/2.0W |
| CO-50IR* | Infrared | 24V/6.6W | |
| CO-70IR* | Infrared | 24V/9.2W | |
| CO-100IR* | Infrared | 24V/14W | |
| HDL Infrared Bar Lights | HBL-74X30IR* | Infrared | 24V/7.5W |
| HBL-146X30IR* | Infrared | 24V/14.5W | |
| HBL-194X30IR* | Infrared | 24V/19.6W | |
| HBL-218X30IR* | Infrared | 24V/21.8W | |
| PL Infrared Spot Lights | PL-2108-3IR* | Infrared | 5V/2.8W |
Note:
1.UV,IR are invisible light.
2.The products whose model number marked with \"*\"?can customized to below wavelength.
? A:850 ? B:940
Application Case
Inspecting the date code on fruit jelly with?HDL-74X30IR940
