Home > Products > Led Ring Lighting > 24V Machine Vision LED Lighting with Plug-in Beads , Ring LED Lights Red 620nm - 630nm
24V Machine Vision LED Lighting with Plug-in Beads , Ring LED Lights Red 620nm - 630nm
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Density LED Bar Lighting Incident Illumination With Machine Vision System
-
High Intensity Bar LightingMachine Vision HDL-74x30 for Continuous / Pulse Operation
-
Dark Field LED Bar Lighting Proving Elongated Illumination , Machine Vision Lights
-
CO Series Industrial Machine Vision LED Coaxial Light Source High uniformity
-
COSQ Series Machine Vision Camera Coaxial Lighting For wafer damage inspection
-
Bar LED Machine Lighting SMD LED Beads 80x16 Uniform Incident ,
Product Details
| Brand Name | Wordop | Place of Origin | China | |
| Model Number | HDR-32 |
Product Description
Certification:CE/RoHs

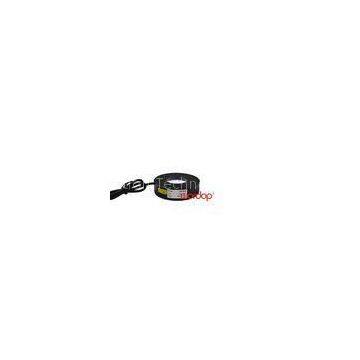

24V Machine Vision LED Lighting with Plug-in Beads , Ring LED Lights Red 620nm - 630nm
Product Features
◆ HDR-66 are equipped with plug-in beads,The high density LED arrarys are ditributed in a ring shape.
◆ Light O.D. is 66mm,The angle between light and horizontal plane is 60°.
◆ Applied as incident illumination.
◆ Breakthrough wave-soldering technology to improve production quality and efficiency.
|
Color(wavelength) |
Red:620-630nm |
Green:520-530nm |
Blue:460-475nm |
|
White color temperature:6000-7500K |
InfraRed:850/940nm |
UV:365/385nm |
|
|
Operating environment(Indoor) |
temperature:0~40℃ Humidity:20% to 85% RH(with no condensation) |
||
|
Life time |
White: 30,000hrs, Red: 60,000hrs(Depends on the operating environment, not a guarantee.) |
||
|
Compatible Control Unit |
PS/PS2 Analog Controller, PD Digital Controller, PBT Strobe Controller. |
||
|
Optional Accessories |
1.Diffusion plate, Polarizing plate. |
||
|
2.Lens attachment ring. |
|||
|
3.DC extension cable:1m/2m/3m |
|||
|
Certificate |
Wordop company have gotten?CE, RoHS. |
||
|
Warranty |
One year product warranty time, free technical support |
||
|
Lights development |
Provide design and development service according to individual needs of customers. Reach the best image effects. |
||
Model No. Demonstration:
|
HDR- |
70 |
R |
||
|
Series |
O.D.mm |
Color |
||
|
HDR- |
50 |
- |
90 |
R |
|
Series |
O.D.mm |
Angle*1 |
Color |
Illumination Structure
HDR series angle diagram ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?????Illumination structure
(*1 The angle between light and horizontal line)
Product Lineup ?Table:
|
Series |
Model |
Voltage |
Colour |
Power |
Dimensions |
Diagrams |
|||
|
R |
W/B/G |
O.D.mm |
I.D.mm |
angle*1 |
|||||
|
HDR |
HDR-32 |
24V |
R/W/B/G |
0.8W |
1.5W |
32 |
10 |
70° |
1 |
|
HDR-35-90 |
24V |
R/W/B/G |
1.0W |
1.5W |
35 |
14 |
90° |
2 |
|
|
HDR-42 |
24V |
R/W/B/G |
1.5W |
2.0W |
42 |
18 |
65° |
3 |
|
|
HDR-50 |
24V |
R/W/B/G |
1.6W |
3.0W |
50 |
28 |
75° |
4 |
|
|
HDR-50-60 |
24V |
