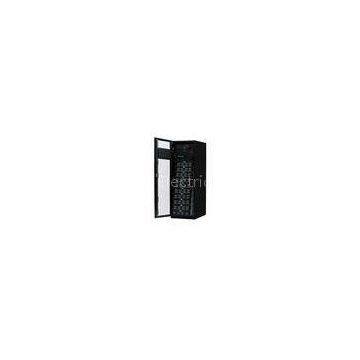

RM600/30X Modular UPS provides power

MODEL

RM600/30X
RM500/25X

RML400/20X
PML300/15X

Capacity

25-600KVA

15-400KVA

Power Module Type

PM30X/PM25X

PML20X/PML15X

INPUT

Phase

3 Phases + Neutral + Ground

Voltage

380V/400V/415V(line to line)

200V/208V/220V(line to line)

Frequency

50/60Hz

Power Factor

>0.99

THDi

THDi<3% @ 100% linear load

Voltage Range

304~478Vac (Line-Line),full load
228V~304Vac (Line-Line),load decrease linearly according to the min phase voltage

166~261Vac (Line-Line),full load
125V~166Vac (Line-Line),load decrease linearly according to the min phase voltage

Frequency Range

40Hz～70Hz

OUTPUT

Voltage

380V/400V/415V

200V/208V/220V

Voltage Regulation

1.5%

THDu

THD<1%(linear load ),THD<6%(None linear load)

Power Factor

0.9

0.8

Crest Ratio

3:1

Overload Capability

110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms

BATTERY

Voltage

±240VDC

±120VDC

Charge Power

20%*System Power

Charge Power Precision

±1%

SYSTEM

System Efficiency

Normal mode:95% ;ECO mode:99% ;
Battery mode:95%

Normal mode:93% ;ECO mode:98% ;
Battery mode:93%

Display

10.4” LCD+LED, Color touch Screen +Keyboard

IP Class

IP20

Interface

Standard :RS232,RS485,Dry contacts, USB; Optional: SNMP ,Expansion dry contact card

Operation/Storage Temperature

0～40℃/-40～70℃

Relative Humidity

0～95%(non-condensing)

Noise

72dB @ 100% load, 68dB @ 45% load(1 meter away)

PHYSICAL

Weight

Cabinet

660Kg

660Kg

Power Module

PM30X: 34Kg; PM25X:32Kg

PML20X:34Kg; PML15X: 32Kg

Dimension (W*D*H)

Cabinet
