Product Details
| Brand Name | INVT | Place of Origin | China | |
| Model Number | VT/VK |
Product Description

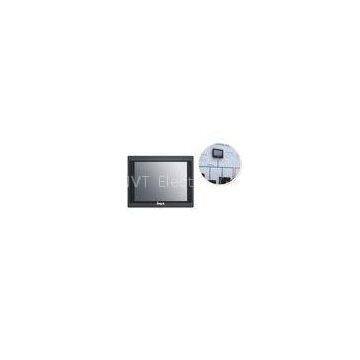

High Human Machine Interaction 20000 hours Backlight Service Life
Description
VT/VK series Human Machine Interaction features rich display function, huge internal memory, advanced configuration function, and easy to use human-machine interface; therefore, it facilitates human-machine interaction in industrial automation field.
Specifications
Specifications and Technical Datas
VT Series－15″
|
Content |
VT150-H1ET-N |
|
|
Display |
Dimension |
15″ |
|
Resolution |
800×600 |
|
|
Display type |
TFT |
|
|
Backlight service life |
20000 hours |
|
|
Brightness |
400cd/m2 |
|
|
Touch screen |
5-wire resistive touch screen |
|
|
Backlight module |
LED |
|
|
Hardware resources |
Processor |
32 bits RISC SOC integrated graphics accelerator |
|
Processing speed |
200MHz |
|
|
Memory |
64M |
|
|
Battery backup memory |
128KB |
|
|
Flash program memory |
8M＋128MB NAND Flash |
|
|
Interface |
Ethernet port |
1×10/100Mb |
|
USB interface |
1 main board, 1 non-main-board |
|
|
Print interface |
N |
|
|
Serial interface |
COM1:RS232/422/485? COM2:RS232/485? COM3:RS232 |
|
|
Micro SD card slot |
Y |
|
|
Power supply |
Input power |
24VDC±10％ |
|
Power consumption |
25W |
|
|
Environment |
Operating temperature |
-10℃～50℃ |
|
Relative humidity |
10％～90％RH(no condensation) |
|
|
Protection class |
NEMA 4/IP65(front panel) |
|
|
Safety certification |
CE/FCC |
|
|
Structure |
Outlet dimension |
399.1×297.6 |
|
Cut out dimension |
384.5×283.0 |
|
|
Depth of front panel(mm) |
6 |
Features
VT/VK series HMI is easy for human-machine interface in industry automation with the advantages of various displaying modes, high capacity, flexible configuration and simple operation.
1.? A variety of the operations, and easy access to data application
2. Multiple language displaying
3. Various picture controls
4. Support up to 16 data formula
5. Support multiple communication connections and sub-connection
