SN Plummer Block Bearing Assembly S3024K - S3056K S3036K S3048K S3052K

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Miru ,OEM And So On		Place of Origin	China
Model Number	S3024K - S3056K

Product Description

Delivery Time:45 DAYS
Certification:ISO9001

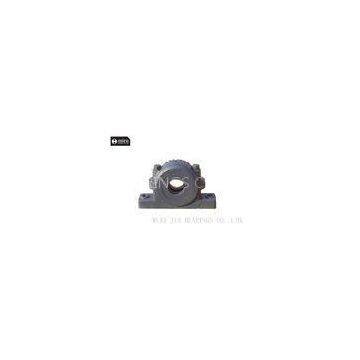

Plummer Block / Bearing Housing S3024K - S3056K / S3036K S3048K ?S3052K
Pillow Block Bearing
Pillow Block Bearing is the rolling bearing and bearing seat together.Most particularly the spherical bearing are?made spherical outer diameter, and the imported bearing with spherical inner hole to install together, variety?structure, good versatility and interchangeability.

Split Plummer block, whose cap and base can be separated, mainly bear radial load. It fits for self-aligning spherical roller bearings or self-aligning spherical ball bearing. They are used in metallurgy, mining, conveyor systems, environment protecting and other industry. The main model No is SN series,SD series,SNU series,SNL series,1500,1600 series,Z2500Y,Z2600Y series,GZ2,GZ4 series and so on. The main difference is load and seal type (oil felt, TG, U-lock, TS ). They has good heat conduction, and also can simplify mounting and dismounting procedures, improve sealing efficiency etc.

Plain Bearing Block Housings are made up of cap, base ,aluminum bronze bushing and installing bolts, which mainly bear radial load. They needn’t to be matched with bearings, so very easy in application. There is one oil groove in the bronze bushing, where lubricant can flow into the axis from the oil hole on the cap of housings. They are mainly used in metallurgy and conveyor systems. The main model No is H2000,H4000,ZHC4-00,HX000,HZ000,ZHC2-00,XHC4-00.

Insert ball bearing units is composed of outer spherical ball bearing and pillow block. In application, it doesn’t need bearing housing., dimension is small and structure is simple, which is easy for use. The insert ball bearing units is solid type, which is rigid and can change with other types. They are able to compensate for initial errors of alignment. Besides, they are sealed at both sides, which can be used in agricultural machinery, construction equipment, conveyor systems, textile machines and fans as well as in machines for food and beverage processing and packaging.

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating as they can be used on smooth or stepped shafts.

Application
Mechanical equipment, hydropower, construction, railway, automobile, steel, electric power, textile, packaging, medical treatment, metallurgy, mining, petroleum, electric power, papermaking, computers, electrical machinery, sports equipment, office equipment, instruments and meters, automobile motor, precision instruments, etc
?
They are easy to mount and require no additional location on the shaft. They are made up of sleeve, lock nut and lock washer. The main model No is H series, HE series, HS series, HA series and OH series.

SN500(SSN500)?SN600(SSN600)?SN200?SN300?SNU500?S3000K?SD3000?SD3100?SD500

SD600?SN3000(SSN3000)?SN3100(SSN3100)?1500?1200?722500?SAF500?SAF600

Housing No.	Shat dia d1?(mm)	Dimensions(mm)	Housing Wt (kg)
h h12	W	L	a	b	c	m	g H12	f1 H12	f2	d2 H12	d3 H12	v	u	s
S3024K	110	112	215	150	390	110	40	320	56	8	10.7	113	135	30	36	M24	16.5
S3026K	115	125	239	160	420	120	45	350	62	8	10.7	118	140	30	36	M24	19.3
S3028K	125	140	259	170	420	120	45	350	63	9	12.2	128	154	30	36	M24	24.6
S3030K	135	150	278	175	460	130	45	380	66	9	12.2	138	164	30	36	M24	29
S3032K	140	150	288	190	470	130	50	390	70	10	13.7	143	173	30	36	M24	37
S3034K	150	160	320	200	540	160	55	450	77	10	13.7	153	183	36	48	M30	45
S3036K	160	170	340	210	560	160	55	470	84	10	13.7	163	193	36	48
