Home > Products > MCS Connector > 5P 7P 11P Female 24 - 12AWG 300V 15A MCS Connector With Fixing Flanges

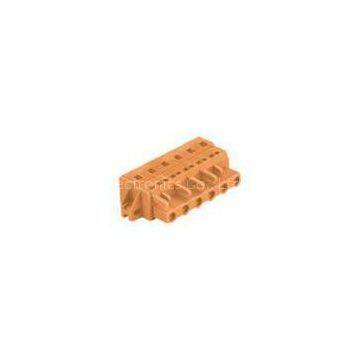

5P 7P 11P Female 24 - 12AWG 300V 15A MCS Connector With Fixing Flanges
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
2-24 Pole 5.0mm Pitch IEC 250V 16A Female Right Head Conncetor With Spring Cage Clamp
-
Angled Female 300V 16A 15A MCS Connector With Fixing Flanges SP450 SP458
-
Grey 24 -14 AWG MCS Connector with 5.0mm Pitch SP450 SP458
-
Right Angle Pin 12A 15A MCS Connector with Long Contact Pins
-
Straight Solder Pin 300V 16A 24 - 14 AWG MCS Connector SP450 SP458 Gray
-
250V 300V 16A 15A 24 - 14AWG MCS Connector 5.0mm Pitch SP450 SP458
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP478 |
Product Description
5P 7P 11P Female 24 - 12AWG 300V 15A MCS Connector With Fixing Flanges
Quick details
2-24 Female connectors with spring-cage clamp with fixing flanges
Pitch 7.62mm/0.3in
Wire Range 0.2-2.5mm2/24-12AWG.??
400V 16A 300V 15A.
2-24 Female connectors with spring-cage clamp with fixing flanges
Order No.:478106/010(Orange).
◆As PCB Connectors,
◆?As feed-through plug connector,
◆?As plug connectors on rail-mounted terminal blocks.
◆?As plug-in connection for flying leads for different types of assembly,
◆?Applied in PCBs?, heat pump controller,?the door control of a lightrail.
|
Article: |
2-24 Female connectors with spring-cage clamp with fixing flanges |
|||
|
Pitch: |
7.62mm/0.3in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
400V |
300V |
300V |
|
|
Rated Current: |
16A |
15A |
15A |
|
|
Wire Range |
0.2-2.5mm2/24-12AWG??? |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Peak Voltage: |
4KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA |
|||
|
Color: |
Orange |
|||
|
Packing: |
100PCS |
|
picture |
name |
|
| simple wire tools |
450014 |
|
|
Jumper |
450012 |
