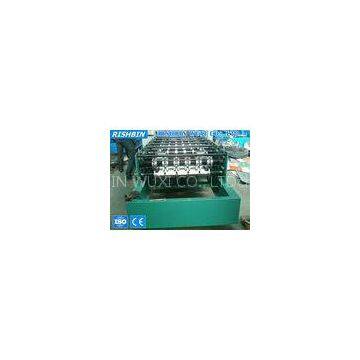

High Speed Trimdeck Roof Panel Roll Forming Machine Yield Strength G550
- T/T L/C D/P D/A
- 7 days
You May Like
-
Corrugated Sheet Double Layer Roof Panel Roll Forming Machine with Post Cutting
-
Colored Steel Double Layer Roof Panel Roll Forming Equipment Hydraulic Cutting
-
7.5 m / min Color Steel EPS Sandwich Panel Production Line for Prefab House
-
0.3 mm - 0.8 mm Double Layer PU Sandwich Panel Machine for Corrugated Panel
-
Rubber Belt Polyurethane Sandwich Panel Production Line with Tracking Cutting
-
Hydraulic Decoiler Discontinuous Polyurethane Sandwich Panel Machine Line for Roof
Product Details
| Brand Name | RISHBIN | Place of Origin | China | |
| Model Number | RH-TR-11 |
Product Description
Certification:CE
High Speed Trimdeck Roof Panel Roll Forming Machine Yield Strength G550
Composition?of?trimdeck roof panel roll forming machine
Roll?forming?main?machine………....………………?1?unit
Control?panel……………………………………….…..1?unit
Manual?Un?coiler………………………...............……1?unit
Hydraulic?station……………………………………?…1?unit
Manual?out?table………………………?……………….2?units
Parameters of?trimdeck roof panel roll forming machine
| Product Name | Item | Description |
| Trimdeck Roof Panel Roll Forming Machine | Working?speed | 12-15m/min?(not contain cutting) |
| Roll?station | About?16 - 24 stations | |
| Material?of?roller | Grade?45?steel,?polished?and?coated?with?chrome | |
| Material?of?main?shaft | 45﹟?steel?? | |
| Diameter?roller | 70mm | |
| Main?power | 7.5KW | |
| Forming?thickness | 1.0mm?zinc?and?color?steel,?250Mpa-G550MPA | |
| Transmission | By?single?Chains?1.5inch | |
| Feeding?and?guide | Surface?polished?and?coated?with?chrome | |
| Machine?drive?parts | Adopt?protect?cover | |
| Machine?station | Adopt?new station with?chrome | |
| Size?of?main?machine | 7500x1500x1300(mm)???L?x?W?x?H?need?1x40GP?container | |
| Weight | About 8000Kgs | |
| Color?of?machine | Blue?( or depend on customer’s?request) |
Technological process of?trimdeck roof panel roll forming machine
De?coiler—feeding—guide---roll?forming----cut?to?length—Out?table
Quick?Detail:
We?are?Specialists?in?roll?forming?machines?for?the?manufacture?the?production?of?building?construction,?suchas?for?the?metal?roofing?and?wall,?various?trapezoidal?profiles?can?be?custom?manufactured.?We?build?complete?roll?forming?lines?for?roofing?&?cladding?lines.
Our?roof?panel?roll?forming?machines?are?special?for?manufacturing?high?quality?steel?roof?&?wall?cladding?
panels,?aluminum?Lock?Roofs.?With?our?engineer’s?many?times?improvements,?the?Ribbed?Roof?Panels?
machine?design?is?perfect.?The?Ribbed?Roof?profile?surface?is?smooth?and?power?fee?is?lower,?driven?by?
chain.
Our Advantage
High Quality Reliable? Durable Reasonable Price Good after Service 1 Year Warranty More Than 10 Years ExperienceContact us
