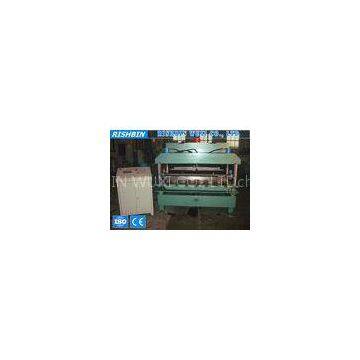

Trapezoidal Metal Roof Sheet Making Machine / Roof Panel Roll Forming Machine

The Chart of process flow of trapezoidal??metal roof sheet making machine

Decoiling→ feeding→ pressing and forming the shape→ measure the length→ cutting→ receiving the plates

Profile of?trapezoidal??metal roof sheet making machine

Steel coil?:1200 mm

The equipment profile drawing

Parts of machine:?Main forming machine, Hydraulic cutter, Electrical control system, Hydraulic system, Normal out table

Technical specifications and details of?trapezoidal??metal roof sheet making machine

Number of forming steps: 15 steps

Material of shaft: 45# steel adjustable treatment. Outer diameter 70mm

Material of rollers: 45#steel, plating hard chrome on the surface, rigidity HR55°-57°

Main motor power:3 kw

Drive:1inch Chain

The forming speed: 8m-12m/min

The plating chromium’s thickness on the surface of rollers: 0.05mm

Thickness of the steel: 0.3mm-0.7 mm

Middle plate: 12mm thickness

Main stand: 250 #?H steel

Dimension of the machine: 8000mmx1000mmx1500mm( according to final design)

Weight of the machine: 3000kg( according to final design)

Hydraulic cutter(double layer)

Material of blade: Cr12 mould steel with quenched treatment60-62°C

Cutting system: adopt advanced hydraulic drive, automatically cutting after forming, no distort, no wasting, high safe factor.

The electrical control system

Display: textscr

The main computer (PLC): Tai Da DVP14ES

Hydraulic system

Adopting advanced hydraulic system of MengNiu

Power: 3KW

Put out stand?: 2 PC 3m*1m(L*w)
