Home > Products > CFP Optical Transceiver > Consistency Hot Pluggable Multi Mode Transceiver 850nm VCSEL array MDIO digital diagnostic

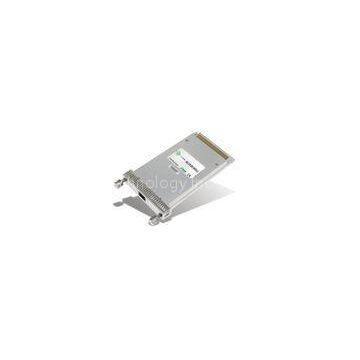

Consistency Hot Pluggable Multi Mode Transceiver 850nm VCSEL array MDIO digital diagnostic

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GB-Link/OEM		Place of Origin	China
Model Number	GB-100CFP-SR10

Product Description

Delivery Time:1~3 working days
Certification:UL, CE,ROHS, FCC, TUV

?
?
Consistency Hot Pluggable Multi Mode Transceiver 850nm VCSEL array MDIO digital diagnostic
?
?
?
Quick Detail:

Product part Number

Data Rate

(Gbps)

Media

Wavelength

(nm)

Transmission

Distance(km)

Temperature Range(Tcase)(℃)

GB-100CFP-SR10-100

100G

1310

100m on OM3 MMF and 150m on OM4 MMF

0~70

commercial

GB-100CFP-SR10-300

100G

1310

300m on OM3 MMF and 400m

on OM4 MMF

0~70

commercial

?
?
?
?
?
?
?
?
?
?
?
?
Description:
?
GB-Link CFP optical transceiver module are a high performance, low power consumption, short reach(1m to 100m) interconnect solution supporting 100G Ethernet and PCIe. It is compliant with the CFP MSA and IEEE P802.3ba 100GBASE-SR10. GB-Link CFP SR10 modules offer 10 transmit and 10 receive asynchronous channels operating at up to 11.2Gbps per channel.
As shown in Figure 1, the transmitter side of the module consists of an array of VCSELs (Vertical Cavity Surface Emitting Lasers) and associated circuitry, which converts 10 parallel electrical data inputs to 10 parallel optical data output signals and also converts 10 parallel optical signals into 10 parallel electrical signals through an array of PIN photodiodes and associated circuitry.
?
?
Applications:?
?

High-speed core router interlinks and data center aggregation Test equipment

Specifications

?
PRODUCT FEATURES

Transmission data rate up to 11.2Gbit/s per channel CFP MSA compliant Compliant to IEEE 802.3ba specification for 100GBASE-SR10 links Up to 11.2 Gbps per channel bandwidth, OTU4 compatible 10 channels 850nm VCSEL array 10 channels PIN photo detector array OM3 Multimode Fiber cable of up to 300m and OM4 Multimode Fiber cable of up to 400m MDIO digital diagnostic and control capabilities. compliant to CFP MSA Management Interface Specification, Draft 1.4 TX input and RX output CDR retiming Hot pluggable electrical interface Power class 1 (<8W max) Operating case temperature 0°C to +70°C 3.3V power supply RoHS 6 compliant(lead free)

Competitive advantage:
?

High reliability and consistency Good pricing Full compatible (CISCO/HP/Extreme/Juniper/H3C…) OEM/ODM? Customized label? Fast delivery
