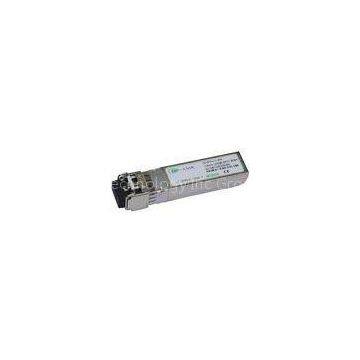

10G CWDM SFP+ 80km 1470nm - 1610nm Transceiver
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
SFP + optical module 10G DWDM 80km Transceiver with Metal enclosure
-
Black 100G Athermal AWG Module Small Box MUX DEMUX for DWDM system
-
MUX DEMUX 100G AAWG Module 19 inch rack with LC / FC / SC Ports
-
4 individual MUX Demux Module for Metro Access / CWDM System / CATV links
-
Black 80 LC ports CWDM Module Screw fixed panel for Uni - direction rings
-
Fiber optical CWDM MUX DEMUX Demux Module 18 pigtails Box , 90x20x10mm
Product Details
| Brand Name | GB-Link/OEM | Place of Origin | China | |
| Model Number | GB-SFP+C-XX-80S |
Product Description
Certification:UL, CE,ROHS, FCC, TUV
10Gb/s CWDM SFP+ 80km Transceiver
?
?
Quick Detail:
?
|
Wavelength |
xx |
Wavelength |
xx |
|
1470 nm |
47 |
1550 nm |
55 |
|
1490 nm |
49 |
1570 nm |
57 |
|
1510 nm |
51 |
1590 nm |
59 |
|
1530 nm |
53 |
1610 nm |
61 |
?
?
?
?
?
Description:
?
GB-LINK SFP+ZR CWDM Transceiver is a “Limiting module”, designed for 10G Ethernet, and 2G/4G/ 8G/10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Applications:
10G Ethernet 10G Fiber Channel (with/without FEC)Specifications:
Up to 11.1Gbps Data Links Up to 80km transmission on SMF Power dissipation < 1.5W CWDM EML Laser and APD receiver Metal enclosure, for lower EMI 2-wire interface with integrated Digital Diagnostic monitoring Hot-pluggable SFP+ footprint Specifications compliant with SFF 8472 Compliant with SFP+ MSA with LC connector Single 3.3V power supply Case operating temperature range:0°C to 70°C?Competitive advantage:
High reliability and consistency Good pricing Full compatible (CISCO/HP/Extreme/Juniper/H3C…) OEM/ODM? Customized label? Fast deliveryContact Us
