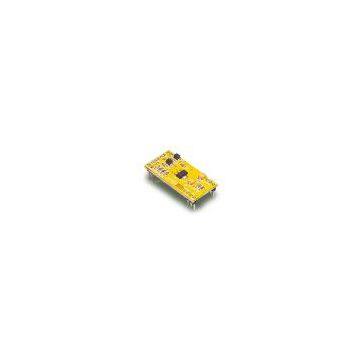

Supply JMY501C RFID Reader module
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | JMY | Place of Origin | China | |
| Model Number | JMY503C |
Product Description
Model NO.: JMY501C
PCD model: NXP MFRC531
Working frequency: 13.56MHz
Card supported: Mifare 1K/4K, FM11RF08, Ultra Light, DesFire, Mifare ProX, SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, T=CL smart cards(both ISO14443A & ISO14443B)
Anti collision ability: Full function of anti-collision; be able to process multi-cards; be able to set operate single card only
Auto detecting card: Supported, default OFF
EEPROM: 512 Bytes
Power supply: DC 5V (±0.5V)
Interface: IIC & UART (selected by SPS pin, recommend to use IIC)
Communication rate: IIC-400Kbps; UART-19.2Kbps/115.2Kbps
Max. command length: 254 Bytes
Interface level: 3.3V (TTL level; 5V tolerance)
Power consumption: 70mA
Reading range: 100mm (depending on card and antenna design)
Dimension: 21mm * 42mm
Package: DIP32
Weight: About 15g
ISP: Yes
Operating temperature: -25 to +85 °C
Storage temperature: -40 to +125 °C
RoHS: Compliant
Normal antenna:
TX500, size: 70mm*70mm, 90mm reading range
TX501, size: 50mm*50mm, 70mm reading range
TX502, size: 30mm*30mm, 60mm reading range
We offer the OEM service.
