sell 13.56MHz rfid module JMY601

This is Mr. Harry Yang from Jinmuyu Electronics Co., Ltd. if you want to know of the details about the following 13.56MHz rfid reader or rfid module, please contact me.

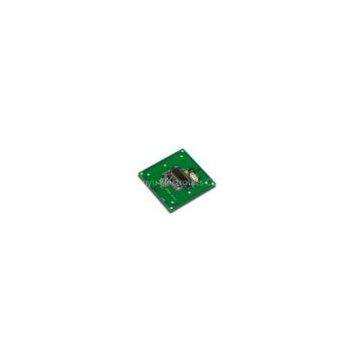

JMY601 series are RFID reader/writer module with UART serial ports. JMY601 has various functions and supports multi ISO/IEC standard of contactless card; the cards from different suppliers. The RF protocol is complex. But the designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module through UART interface. The module and antenna are integrated design. The impedance between RF module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability.

Qualifications:
PCD: NXP RC531, RC632
Working frequency: 13.56MHz
RF standard: ISO14443A, ISO14443B, ISO15693
Operating distance: 80mm(Mifare One, typical distance)
Anti collision ability: Full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only
Auto detecting card: Supported, default OFF
EEPROM: 512 Bytes
Interface: UART(TTL Level)
Baud rate: 19200bps--115200 bps
mand length: 254 Bytes
Interface level: 3.3V(TTL level; 5V tolerance)
Power supply: DC5V
Power consumption: 80mA
Dimension: 60mm*60mm*5.7mm
Weight: about 20g
Operating temperature: -25 ~ +85 centigrade
Storage temperature: -40 ~ +125 centigrade
RoHS: Compliant
