Product Details
| Brand Name | Xinhai | Place of Origin | China | |
Product Description

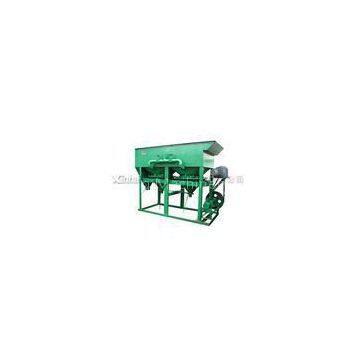

Simple Maintenance Gravity Separator Machine Jig For Process Ores
Simple Maintenance Gravity Separator Machine Jig
Quick Detail:
1. Large capacity
2. Jig is able to process ores with a wide range of particle size
3. The operation and maintenance are very simple
Description:
Jig has advantages as follows: stepless speed regulation; the machine vibrates evenly and the minerals can be processed uniformly; it has remarkable adaptability and is especially good at handling medium and fine minerals; low water consumption; low maintenance.
Applications:
It is mainly used to handle placer gold, tungsten, tin, hematite and beach placer.
Principle:
Sawtooth wave jig is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve----produced by sawtooth wave jig----is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.
Specifications :
| type | model |
length× width |
Jigging Chamber area |
The number Of General Jigging chamber |
General Area of jigging Chamber (m2) |
Stroke Coefficient |
Diaphragm stroke |
diaphragm |
The maximum Feed size |
Processing capacity |
Water consumption |
Motor power |
weight (kg) |
| Lateral driven | LTP- 34/2 |
450×300 | 0.135 | 2 | 0.27 | 0.58 | 0～25 | 320；420 | 12 | 2～6 | 4～10 | 1.1 | 750 |
| Bottom driven | LTA- 55/2 |
500×500 | 0.25 | 0.5 | 0.5 | 0～26 | 250;300;350 | 5 | 1～5 | 4～20 | 1047 | ||
| LTA- 1010/2 |
1000×1000 | 1 | 2 | 0～25 | 250;300;350 | 5～15 | 20～60 | 22 | 1516 | ||||
| RevibratingRe- | 0～5 | 400～750 | 2～10 | 4～5 | 40～45 | 1.7 | 1620 | ||||||
| Side driven | LTC－ 69/2 |
900×600 | 0.54 | 1.08 | 0.56 | 0～50 | 220～350 | 12 | 6～9 | 40～60 | 15 | 1420 | |
| 2LTC- 79/4 |
900×700 | 0.63 | 4 | 2.52 | 0.48 | 160～250 | 5～15 | 20～90 | 22 | 2450 | |||
| 2LTC- 912/4 |
1200×900 | 1.08 | 4.32 | 0.49 | 160-250 | 7～25 | 60～120 | 3 | 3500 | ||||
| 2LTC- 366/8T |
600×(300～600) | 0.2～0.34 | 8 | 2.16 | 0.68～0.40 | 120～300 | 5 | 3～6 | 20～40 | 1.1×2 | 1600 | ||
| 2LTC- 6109/8T |
900×(600～1000) | 0.58～0.86 | 5.76 | 0.52～0.35 | 10～20 | 80～120 | 2.2×2 | 4650 |
