Home > Products > Magnetic Separation Equipment > Wear Resistance Mineral Magnetic Separation Equipment Magnetic Drum

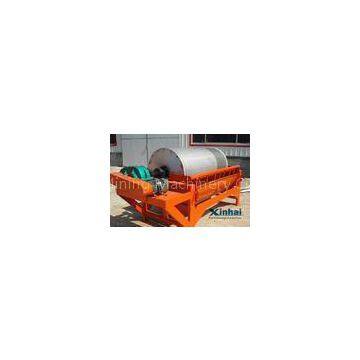

Wear Resistance Mineral Magnetic Separation Equipment Magnetic Drum
- T/T L/C D/P D/A
- 7 days
You May Like
-
Simple Maintenance Gravity Separator Machine Jig For Process Ores
-
Uniform Mixing of Slurry And Air, Mineral Processing Air Inflation Flotation Cell
-
Low Power Consumption SF Flotation Cell / Separator , Ore Beneficiation Plant
-
Powerful Energy Saving Steel Ores Agitation Tank With Powerful Stirring Capability
-
Industry Hydraulic Sand Separator Hydrocyclone Equipment for Ore Processing
-
High Efficiency Vibrating Screening Machine Round Vibrating Screen ( YA )
Product Details
| Brand Name | Xinhai | Place of Origin | China | |
| Model Number | CT |
Product Description
Certification:ISO9001/CE
Wear Resistance Mineral Magnetic Separation Equipment Magnetic Drum
Good Performance Magnetic Separation Equipment Magnetic Drum
Magnetic Drum—Quick Detail:
1. Good performance and high quality
2. The surface of the drum can be covered with Xinhai abrasion resistance rubber which is famous for its super wear resistance
Magnetic Drum—Description:
1. Easy to install and convenient to use
2. High efficiency and stable performance
3. The surface of the drum can be covered with Xinhai abrasion resistance rubber which is famous for its super wear resistance.
Magnetic Drum—Applications:
Separate large block (e.g. 200~0mm) ferromagnetism materials.
Magnetic Drum—Principle:
The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley.
Magnetic Drum—Specifications :
| Model | ID (mm) |
Length (mm) |
Belt width (mm) |
Average field strength of cylinder surface(mT) | Allowable torque (N.m) |
Materials Particle size (mm) |
Capacity (t/h) |
Weight (kg) |
| CT-0404 | 410 | 465 | 400 | 150-160 | 1300 | 10-40 | 20-30 | 250 |
| CT-0505 | 520 | 500 | 150 | 20-40 | 500 | |||
| CT-0506 | 600 | 500 | 2100 | 40-60 | 600 | |||
| CT-0507 | 750 | 650 | 2120 | 60-80 | 700 | |||
| CT-0707 | 750 | >160 | 2860 | 10-60 | 80-100 | 1200 | ||
| CT-0709 | 950 | 800 | 5500 | 100 | 1620 | |||
| CT-0816 | 800 | 1600 | 1400 | 9760 | 1OO-150 | 2850 | ||
| CT-1010 | 1000 | 970 | 800 | 200-210 | 5590 | 10-100 | 150-200 | 3410 |
| CT-1012 | 1170 | 1000 | >200 | 10680 | ≤100 | 200 | 4010 | |
| CT-1014 | 1400 | 1200 | 12810 | 4600 | ||||
| CT-l0l6 | 1600 | 1400 | 160-210 | 14920 | 10-100 | 150-200 | 5200 | |
| CT-12l0 | 1200 | 970 | 800 | 8380 | 4380 | |||
| CT-1212 | 1170 | 1000 | >160 | 10470 | ≤100 | 200 | 5280 | |
| CT-1214 | 1400 | 1200 | 12570 | 6070 | ||||
| CT-1216 | 1600 | 1400 | 14580 | 6670 | ||||
| CT-1218 | 1800 | 1600 | 16620 | 7260 | ||||
| CT-1412 | 1400 | 1200 | 1000 | 16000 | ≤l20 | 6000 | ||
| CT-1414 | 1400 | 1200 | 20000 | 7100 | ||||
| CT-1416 | 1600 | 1400 | 400 | 25000 | ～400 | 300 | 9800 | |
| CT-1518 | 1500 | 1800 | 1600 | ≥450 | 30000 | 600 | 14000 |
