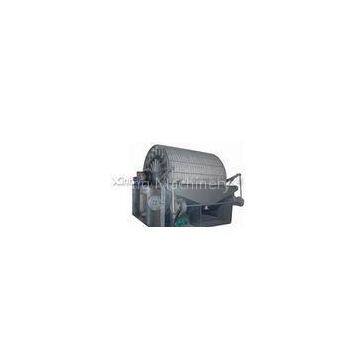

Complete Slurry Dewatering Equipment External Filtration Type Drum Filter
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wear Resistance Mineral Magnetic Separation Equipment Magnetic Drum
-
Simple Maintenance Gravity Separator Machine Jig For Process Ores
-
Uniform Mixing of Slurry And Air, Mineral Processing Air Inflation Flotation Cell
-
Low Power Consumption SF Flotation Cell / Separator , Ore Beneficiation Plant
-
Powerful Energy Saving Steel Ores Agitation Tank With Powerful Stirring Capability
-
Industry Hydraulic Sand Separator Hydrocyclone Equipment for Ore Processing
Product Details
| Brand Name | Xinhai | Place of Origin | China | |
Product Description
Complete Slurry Dewatering Equipment External Filtration Type Drum Filter
Complete Dewatering Slurry Dewatering Equipment External Filtration Type Drum Filter
Quick Detail:
1. Large handling capacity
2. Complete dewatering
3. Remarkable technical and economic effect
Description:
Cylinder is the main part of the filter, pulp tank is installed in the bottom of the cylinder and it is used for containing the filter pulp. Transmission device rotates by the drive from the cylinder.
Applications:
Mainly used for filtering nonferrous metallic and concentrate with fine particle size and low water content.
Principle:
Filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate. Filter cake comes out from slime hopper receiving spray washing. Continuous dehydration for filter cake is conducted with the action of high vacuum force.
Specifications :
| Model | Filtering area (m2) | Drum specs (mm) | Rotating speed of the drum (r.p.m) | Pressure on vacuum pulp KPa | Draw-out air volume (m3/min.㎡) | Pressure on fan (Kpa) | Blowing volume | capacity (t/h) | Motor model | power of the motor drum (kw) | Model of the motor agitator | Power of the motor agitator (kw) | weight (kg) |
| GW-3 | 3 | φ1068× 910 | 0.156-1.56 | 60-80 | 0.5-2 | 10-30.0 | 0.2-0.4 | 0.8-1.5 | YCT132 -4B | 1.5 | XWD0.75 -4-59 | 0.75 | 2635 |
| GW-5 | 5 | φ1600× 1060 | 1.6-2.4 | 3760 | |||||||||
| GW-8 | 8 | φ2000× 1400 | 0.1-0.6 | 2.8-3.6 | YCT160L -4A | 2.2 | Y112M-6 | 2.2 | 5455 | ||||
| GW-10 | 10 | φ2000× 1800 | 3.0-4.0 | 6017 | |||||||||
| GW-12 | 12 | φ2000× 2000 | 60-80 | 0.5-2 | 3-5 | Y112M -6 | Y100L-6 | 1.5 | 6365 | ||||
| GW-20 | 20 | φ2500× 2650 | 0.14-0.54 | 60-80 | 0.5-2 | 3-8.0 | YCT160 -4B | 3 | XWD3 -4-17 | 3 | 10600 | ||
| GW-30 | 30 | φ3350× 3000 | 0.1-0.6 | 4.5-12 | YD160M -8 | 2.2 | XWD3 -4-17 | 2.2 | 17200 | ||||
| GW40 | 40 | φ3350× 4000 | 6.0-16 | YD160M -6 | 3.7 | XWD4 -4-17 | 3.7 | 19500 | |||||
| GW-50 | 50 | φ3350× 5000 | 7.5-20 | YD160M -4 | 5 | XWD5.5 -7-59 | 5.5 | 21500 |
