Desk top Waterproof Industrial Mini keyboard with 95keys and IP65 rated

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	IKB-MKB		Place of Origin	China
Model Number	K-TEK-A340KP-FN-DT

Product Description

Delivery Time:ASAP Within 2 weeks upon payment confirmed
Certification:CE,FCC,ROHS,IP65,IP68,ESD

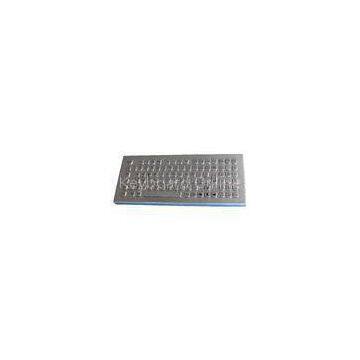

Desk top Waterproof Industrial Mini keyboard with 95keys and IP65 rated

Special Features:

1. With industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm)??????????????????????????????????????????????????????

2. 95 keys IP65 dynamic vandal proof stainless steel industrial desk top keyboard

3. Movable stand alone DESK TOP VERSION, or mountable desktop with mounting holes on the bottoms for fixing

4. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
5. CE, FCC, ROHS, IP65, ESD

6. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

7. Key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

8. Complete electronic modules including controller in close consultation with our customers are available.

Applications:

This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

MECHANICAL DATA
Key	95 keys, super quality brushed stainless steel
Key top style	Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar.
Key travel	2.0mm
Switch life	more than 10 million of operations
Actuation Force	0.6N 0.1N for key 14.0mm x 14.0mm (pressure point) 1.2N 0.1N for key 14.0mm x 28.0mm (pressure point)
Mounting Rack	Aluminum alloy
Stainless Steel Housing	Full 1.2mm Super quality brushed stainless steel
Lettering	Sunk laser legends & characters in high quality ink
Actuator/keys materials	stainless steel
G.W.	2.30KGs
Dimensions	343.0mm x 148.0mm x 20.0mm (L x W x H)

ELECTRICAL DATA
Supply Voltage	+5V DC 5%
Current Rating	appr. 20mA
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010； IEC 61000-4-4:2004
EMI:	EN 55022: 2010
EMS:	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material:	Carbon-on-Gold key switch technology PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20oC to +60oC
Storage temperature	-30oC to +70oC
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at + 40oC
