IP65 Dynamic Vandal Proof Industrial Mini Keyboard With Panel Mounting

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	IKB-MKB		Place of Origin	China
Model Number	K-TEK-B285

Product Description

Delivery Time:ASAP Within 2 weeks upon payment confirmed
Certification:CE,FCC,ROHS,IP65,IP68,ESD

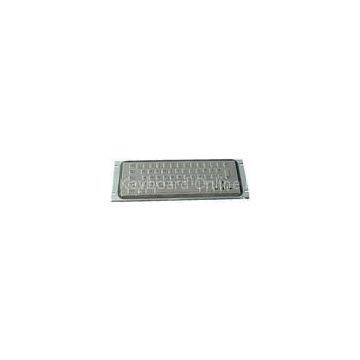

IP65 Dynamic Vandal Proof Industrial Mini Keyboard With Panel Mounting

Special Features:

1. 64 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
2. With rear panel mounting solution with mounting holes easily & tightly
3. Mounting to enclosure or panel.

4. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

5. Industrial metal dome PCB with gold-on-gold key switch technology

6. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
7. CE,RoHS,FCC,IP65,ESD

Applications:

This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

MECHANICAL DATA
Actuator/keys	64 keys, 2.0mm thickness super quality SUS304 brushed stainless steel bulge keys.
Key top style	Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys 14.0mm x 28.0mm for enter key 14.0mm x 100.0mm for space bar.
Key travel	0.45mm
Switch life	more than 5 million of operations
Actuation Force	2.0N0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N0.1N for key 14.0mm x 28.0mm (pressure point)
Front Plate	1.5mm thickness super quality brushed stainless steel
Back Plate	3.0mm thickness brushed & oxidized aluminium
G.W.	1.30KGs
Dimensions	285.0mm × 115.0mm (front panel)

ELECTRICAL DATA
Supply Voltage	+5V DC 5%
Current Rating	appr. 20mA
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010； IEC 61000-4-4:2004
EMI:	EN 55022: 2010
EMS:	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material:	Gold-on-Gold key switch technology PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20oC to +60oC
Storage temperature	-30oC to +70oC
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at + 40oC	21 days, IEC 60512-6
Dry heat test at + 85oC	10 days, IEC 60512-6
