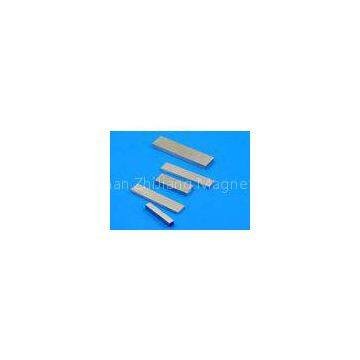

7.3 g/cm3 Density Blocks Alnico 5 Magnet For Guitar Pickup Using
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
5kOe Magnetizing Dield Alnico 5 Magnet Bar For Aerospace
-
Alnico 5 Magnet Odemeter Magnet , Meter Magnet , Motorcycle Magnet
-
Plastic Injection Alnico 5 Magnet Odemeter Magnet , High Magnetic
-
Cast Surface Alnico 8 Magnet Permanent For Holding Magnets
-
High Magnetic Alnico 8 Magnet , Aerospace / Automobile Magnet
-
Customized OEM Alnico 8 Magnet With Good Corrosion Resistance
Product Details
| Brand Name | ZJMAG | Place of Origin | China | |
Product Description
Certification:ISO 9001: 2008
? 7.3 g/cm3 Density Blocks Alnico 5 Magnet For Guitar Pickup Using
Quick Detail:
1. Density - 7.3 g/cm3
2. Manufacturing process -?casting?(most common)
3. Shapes- blocks, bars
4. Saturation magnetizing field required - about 5kOe.
Cast Alnico magnet is composed primarily of Aluminum, Nickel, Cobalt, Copper and Iron. It has very good corrosion resistance and high temperature operation.
Although other magnetic materials offer greater energy and coercivity values, the high remanence and thermal stability of AlNiCo makes it the most effective magnetic material for certain applications, like generator, microphone, lifting, voltmeter and measuring instruments. It is widely applied in high stability fields like aerospace, military, automobile and security systems.
|
Physical Properties of Cast Alnico |
|
|
Curie Temperature (℃) |
760-890 |
|
Max. Operating Temperature (℃) |
450-550 |
|
Resistivity (μohm.cm) |
47-54 |
|
Hardness (Hv) |
520-630 |
|
Density (g/cm3) |
6.90-7.30 |
|
Relative Recoil Permeability (μrec) |
1.70-4.70 |
|
Saturation Field Strength (kOe,kA/m) |
2.7-6.3/215-500 |
|
Temperature Coefficient of Br (%/℃) |
-0.025 ~ -0.02 |
|
Temperature Coefficient of iHc (%/℃) |
+0.01 ~ +0.03 |
Applications:
Instruments
Guitar pickups
Performance of Cast AlNiCo Magnets
|
Grade |
Br |
Hcj |
Bhmax |
D |
MMPA |
α %/°C |
TC. |
TW. |
|
LNG37 |
12.0(1200) |
600 (48) |
4.65 (37.0) |
7.3 |
Alnico5 |
-0.02(+0.03) |
860 |
525 |
|
LNG40 |
12.5(1250) |
600 (48) |
5.00 (40.0) |
7.3 |
Alnico5 |
-0.02(+0.03) |
860 |
525 |
|
LNG44 |
12.5(1250) |
650 (52) |
5.50 (44.0) |
7.3 |
Alnico5 |
-0.02(+0.03) |
860 |
525 |
|
LNG48 |
12.5(1250) |
650 (52) |
6.00 (48.0) |
7.3 |
Alnico5DG |
-0.02(+0.03) |
860 |
525 |
Competitive Advantages
1. Advanced techniques in producing long rods?
2. Tight tolerance as 0.01mm
3. Dimensional Stability
4. Comparatively high magnetic properties
5. Excellent temperature stability
6. Strong corrosion resistance
7. The maximum working temperature is up to 550°c
