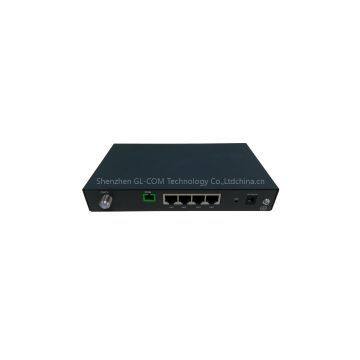

GL-E8033U-D High Quality fiber optic epon equipment 1 CATV PORT EPON ONU FTTH Solution ONU

GL-E8033U-D High Quality fiber optic epon equipment 1 CATV PORT EPON ONU FTTH Solution ONU

GL-E8031U-D/E8033U-D type ONU products fully comply with IEEE 802.3-2005 and the China Telecom EPON device technical specification (V2.1). It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.

Product features:

• Conform to IEEE802.3ah standard and meet CTC V2.1 technical requirements

• Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services

• Support frame filtering and suppression

• Support standard 802.1Q Vlan function, support VLAN conversion

• Support 4094 VLANs (802.1Q)

• Support Dynamic Bandwidth Allocation (DBA) function

• Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc

• Support IGMP Snooping

• Support Ethernet port ratelimit loop detection

• Support power failure alarm

• Support lightning protection for power supply and lightning protection for service port

• CATV radio frequency feature (optional)

Output level 95dBuv (input-6dbm)

AGC working range 10dB CNR ≥46dB@-6dBm (input)

Port features:

• 1 PON ports (1.25G)

• 4 10/100/1000M port

• 1 CATV port（E8033U-D have this interface）

Physical features:

l Physical dimension: 194*117*30 (L×W×H, unit: mm)

l Power supply: 5VDC

Power consumption: 6W

• Temperature:
  Working temperature:-10～55℃
  Storage temperature: -30～60℃
  Relative humidity: 10～90% (non-condensing)

•
