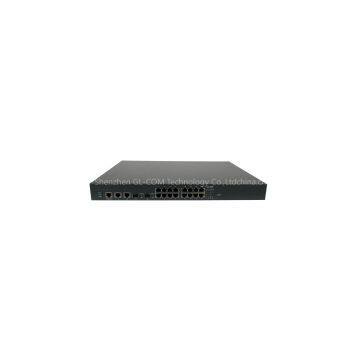

Fast Ethernet POE switch Management GL-2016SMP 16FE ports 2 gigabit optical/electrical ports

Fast Ethernet POE switch Management GL-2016SMP 16FE ports 2 gigabit optical/electrical ports

Overview

GL 2000 switch series is a new generation of L2 switches with high performance, multiservice, high reliability and high security that are independently developed by GL. They support all kinds of connections varying from 10/100M to 1000M, so the network can be configured flexibly according to actual needs. The switches can access all Ethernet or fast-Ethernet devices, so they can be very compatible with the existing devices.

Properties

Excellent performance

• 32Gbps backplane bandwidth, hardware forwarding and wire-speed L2 packet forwarding rate

• Gigabit optical-fiber transmission with up to 80Km distance and directly connecting the MAN backbone network

High security and reliability

• Providing multiple user authentication modes such as 802.1x authentication

• Powerful ACL and hardware supporting L2 to L7 data filtration

• Port-MAC-IP bind

• Special ARP invasion detection to effectively stop ARP cheat

• Hardware IPv6 ACL

Flexible and various management modes

• Automatically identifying the straight-through cable and the intercrossed cable

• Adopting the cluster technology; supporting device cascading; managing uniquely through a unique IP address; saving address resources

• Multiple management modes such as Console port, Telnet, Web and SNMP are supported.

Powerful flow and broadcast management

• Detecting and limiting broadcast storms automatically and supporting IGMP snooping to limit broadcast flooding

• Supporting flow control in full-duplex mode or half-duplex mode

• The rate limitation in a minimum step of 64K is supported on the Ethernet interface.

• Supporting IP multicast and QoS

• Flexible QinQ realizes the QinQ function based on the five-element group.

Varied protocols

• POE switches support 802.3af power supply on all their ports.

• POE switches already support 802.3at power supply. The maximum power supply on each port can reach up to 30W.

• POE switches support the configuration of power-supply priority, guaranteeing continuous power supply at those key network nodes.

• The POE switches support configuring the power consumption of power supply on their ports, saving the power and reducing users' cost.
