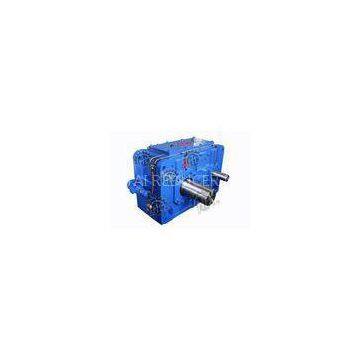

Helical Shaft Mounted Speed Reducer Metal Shredder 21-5913 Electric Power Motor 10

Type

Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

B Series Bevel-helical Gear Unit

Double-stage

4--18

5--14

41-4,436

5,800-226,000

S. Solid Shaft?????????????????????????????????? H. Hollow Shaft???????????????????????????????? D.Hollow Shaft for Shrink Disk

H:Horizontal?? V:Vertical M:Horizontal Design Without Feet

Three-Stage

4--26

12.5-90

62-4,452

70,100-952,000

Four-Stage

5--26

80-400

2.6-1,652

10.6-945,000

Series

Transmission Ratio ?(i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,

H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26

H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,

H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26

H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,

H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26

Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damage
