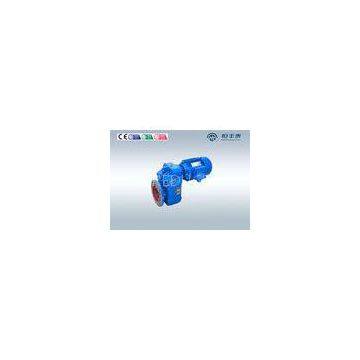

Custom Parallel Shaft Mounted Reducer , Compressor / Washer Gearbox

Custom Parallel Shaft Mounted Reducer , Compressor / Washer Gearbox

Quick Details:

Gearing Arrangement:?Helical

Output Torque:?180 N. M- 15300 N. M

Rated Power:?0.12-160 KW

Ratio: 3.71- 262.9

Place of Origin:?Zhejiang, China (Mainland)

Model Number:?HF(A,F)37-157

Brand Name:?HENGTAI

Color:?According to customer

Mounting position:?Shaft mounted

Material for box:?Cast iron

Packing:?Strong wooden cases for exporting

Output shaft:?Hollow/Solid output shaft

Output shaft diameter:?25-120 (solid) MM,30-120 (hollow) MM

Other name:

F series extra-slim parallel shaft helical gearmotors

F series shaft mounted speed reducer

F series conveyor shaft mounted gearbox

Descriptions:

Parallel shaft mounted reducer, made by Zhejiang Hengfengtai Reducer Mfg. Co.,Ltd,

?are the perfect solution when space is limited. The many different sizes and designs ensure that the

Parallel shaft mounted reducer can be used in a wide variety of applications even under the

most unfavorable conditions. Such as agriculture, telecommunications industry, food industry, tobacco

industry, automotive industry, cement industry, mining industry, tourism industry and so on.?

Your benefits:

1, Compact design, small volume, nice appearance and strong capacity of being overloaded.

2, Precise division and wide selection range for transmission ratio.

3, The efficiency is up to as high as 96% with low energy consumption, excellent function, small vibration

and low noise.

4, All-purpose use, convenient and low cost maintenance.

5, New seal device .

6, Varied options of the mounting position ,motor combination

7, with small volume , helical gear achieve the output torque range of 69-18000NM and output power as

much as 200KW.

Maintenance:

After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.

Pls do not mix the mineral oil and synthetic oil.

Pls check the oil level in regular time.

WARRANTY:

HFT guarantees the products sold for one year from the date of delivery.

Warranty is limited to repair or replacement, free at our plant, of defective parts?due to an ascertained

defect of material or manufacture. The parts replaced remain our property. All other compensation is

excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack

of use of the goods purchased.

Applications:

Our F Series Parallel shaft mounted helical gear reducer can be with roller as the power source of belt

conveyor or lifting machine. With the characteristics of conveyor, high efficiency, simple structure,

convenient installation and maintenance. It was widely used in postal, cenment, mining, tourism, food

industry, etc.

Specifications:

Typical installation:

THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
