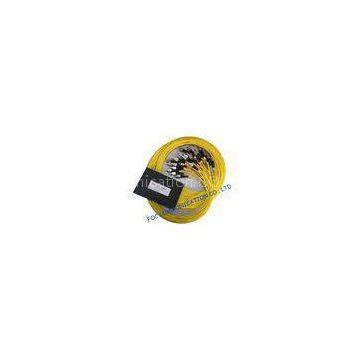

FTTX Fiber 1 32 Optic Splitter Module Low Loss for Optical Signal Distribution Systems
- T/T L/C D/P D/A
- 7 days
You May Like
-
Bare Blockless Optical Fiber Splitter 1 * 4 for Passive Optical Networks
-
Various Coupling Ratio Fused Biconical Taper Coupler for LAN Systems
-
Fiber PLC Splitter 1 * 12 ABS Module Package for Long Haul Telecommunications
-
Ribbon Fan Out Fiber PLC Splitter 1 32 for Optical Signal Distribution , Low Insertion Loss
-
PON Mini Tube Fiber Planar lightwave circuit splitter with SC / APC Connector
-
Wide Wavelength Optical Fiber PLC Splitter Mini Tube 1 4 with SC Connectors
Product Details
| Brand Name | FOCABLE | Place of Origin | China | |
| Model Number | 1*32 PLC Splitter Module |
Product Description
FTTX Fiber 1× 32 Optic Splitter Module ?Low Loss for Optical Signal Distribution Systems?
?
Planar lightwave circuit splitter (PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the advantages of small volume, wide bandwidth, high reliability, excellent uniformity. Optical fiber splitter is especially suitable for passive optical networks (EPON, BPON, GPON) which is connected with the terminal equipment and realize the optical power distribution.
?
FOC COMMUNICATION CO., LTD provides 1*N and 2*N fiber optic splitters. And these PLC splitters can be made as per customer request.
Features
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Optical Signal Distribution
Test Equipments
?
Optical Specifications
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
|
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.4 |
10.7 |
13.9 |
17.2 |
21.5 |
|
Uniformity (Max.) |
dB |
0.5 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.6 |
11.0 |
14.8 |
17.9 |
21.5 |
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
