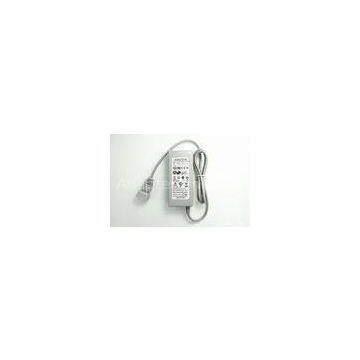

Cleaning Robot EN61558 Switching Power Supply Adapter , OEM / ODM C6 / C8 / C14 2 Pins / 3 Pins

Brand Name	WT		Place of Origin	China
Model Number	WT1503000

Delivery Time:15 Days
Certification:UL/CUL, PSE, TUV/GS,CE, CCC, SAA, ROHS

15V 3A DC Output OEM / ODM Switching Power Supply Adapter for Cleaning Robot Meet EN61558 Standard

Quick details:?

Input?voltage:?100?to?240V?AC,?50/60Hz Output?voltage/current: 15v 3A Output power: 45W Dimension?(L?x?W?x?H):?114*50*30mm Socket type: C6/C8/C14, 2/3 pins DC cord: 1.2m/1.5m/1.8m DC jack: 5.5*2.5*11mm/ 5.5*2.1*10mm Color:Black / Light Gray Application: Cleaning Robot, Household Appliances, etc OEM/ODM Available Safety Standard: EN61558:2000

Description:

1. Surface?cosiness,small?size?and?convenient?carrying

2. Low?cost,high?reliability?and?all?cases?are?covered?by?ultrasonic

3. Built-in?OVP,OCP?and?SCP

4. Universal?input?voltage:

a. I/P?voltage?100-240VAC;50/60Hz b. Turn?on?delay?time≤3s c. Inrush?current≤30A/24V?AC

5.?O/P:

a. High?accuracy?and?low?noice b. Hold?up?time?≥20mS

6. Operation?model: CV

7. Environment:

a. Operation?temperature:0°C-40°C;5%-90%RH b. Storage?temperature:-20°C-85°C;5%-95%RH

8. Cooling:Natural?cooling

9. Energy?standard:CEC/ERP

10. Safety?standard:IEC/EN60950?

11. Insulation:?hi-pot,?3,000V?AC?60S?10mA

12. Leakage?current:?0.25mA?(maximum)

13. MTBF:?MIL-HDBK-217F,?full?load,?25,?more?than?50,000?hours

14. RoHS?compliant

Warranty:	1?year
Certification: ? ??	UL/CUL,?PSE,?TUV/GS,CE,?CCC,?SAA?and?ROHS
Usage:	Cleaning Robot, Household Appliances, etc??
Packaging:?	PE?bag+?white?box ?50pcs/carton ? ? ? ?
Place?of?Origin:	China
Brand?Name:	WT
Model?Numeber	WT1503000
MOQ	500 pcs
Delivery?Time:	15 Days
Payment?Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply?Ability:	6000PCS/Day

Our?Advantages:

Professional&experienced?engineers Good?quality Competitive?price Intime?service Free?samples?available? About?10?years?experiences OEM/ODM?services?are?highly?welcome Flexible?to?meet?dynamic?requirements High?technology Short?Lead?time AC?input?power?suitable?for?the?world Soft-start?current?can?reduce?the?AC?input?impact?efficiency With?short-circuit?and?overload?protection Compact?size?,light?weight 100%full-load?burning?test Installed?with?EMI?filter?,minimum?wave

Some Using Details:

Do not install power supply in locations with high humidity, dust or strong direct sunlight. Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Power supply can only be installed indoors. The power supply should be installed in a location with good airflow.
