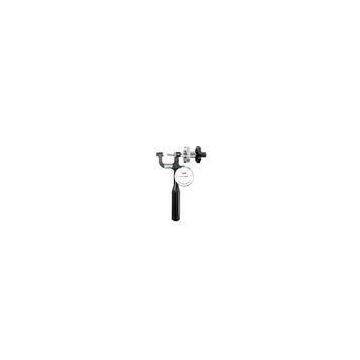

Standard ISO6508 M-1 Portable Hardness Tester 0.5HR Resolution Testing HRN, HRT, HRW

Standard ISO6508 M-1 Portable Hardness Tester 0.5HR Resolution Testing HRN, HRT, HRW

Tests the superficial hardness of metals. The test principle and accuracy comply to standard ISO6508.

With the bench stand it can be used on the desk as well as on site. Tests the hardness of thin plate,

slim pipe, thin shaft, small ball and small stampings, workpieces with small supporting surface as well

as parts requiring small indentation, replacing Vickers hardness tester. It is used for finished workpiece

NDT test directly.The small indentation is non-destructive to most workpieces. Traceable standard

hardness block. Indenter inspected with standard Rockwell hardness tester. Test force calibrated with

load cells directly traceable to national secondary benchmark. Copyright ?2008 TX Testing Instruments

Co., Ltd. All Rights Reserved. Web Design by Hengjishangwu Chinese | Add to IE Favourites

Details:
Initial Test Force:???????????????? 3kg
Total Test Force:????????????????? 15kg, 30kg, 45kg
Force Applying Method:?????? By screw
Indenter:???????????????????????????? 120iamond cone Ф1.588mm carbide ball
Accuracy:????????????????????? ? ?? Meets the requirements of ISO6508
Resolution:????????????????????????? 0.5HR
Testing Range:???????????????????? HRN, HRT, HRW, HRX, HRY, etc. 15 scales.
Application:???????????????????????? All metals including iron, steel
????????????????????????????????????????? copper, aluminium, zinc, lead, tin,
????????????????????????????????????????? carburized steel, nitrided steel etc.

M-1S:?????? For Superficial testing case-hardened stocds up to 1\"thick, thin stock
??????????????? and soft materials in Rockwell N and T scales.

M-1ST:???? For Superficial testing small diameter tubing with walls.
????????? ? ?? Anvil fits into 3/6\"I.D.and larger.?? Rockwell 15-T scale only.
M-2:??????? 0-2\"capacity.??????? Weight:2.5 lb/1.23kg
M-2S:????? (Superficial)0-2\" capacity for Rockwell N and T scales
