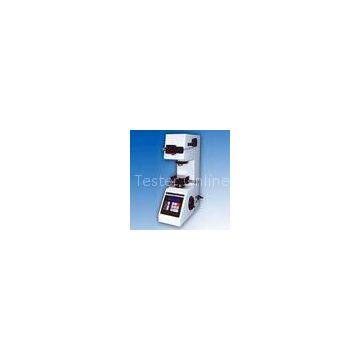

High Precision Sheet Specimen DHV-1000 Micro vickers hardness testing machine 85mm 5 HV ~ 2500 HV

High Precision Sheet Specimen DHV-1000 Micro Vickers Hardness Tester 85mm 5 HV ~ 2500 HV

The micro-Vickers hardness tester DHV-1000 is especially well suited for high precision hardness testing of?small and/or thin specimens such as sheet, foil, coatings, ceramic products, and hardened layers. To ensure?a satisfactory indentation, the DHV-1000 features automatic loading and unloading operations, a very precise?loading mechanism and a robust lever system. The micro-computer controlled system ensures an absolutely?precise hardness measurement with adjustable dwell time

Type: Micro Vickers hardness tester
Testing forces (N): 0.098 / 0.246 / 0.49 / 0.98 / 1.96 / 2.94 / 4.90 / 9.80
Testing forces (gf): 10 / 25 / 50 / 100 / 200 / 300 / 500 / 1000
Load control: Automatic loading and releasing
Holding Time (s): 5~60
Magnification of microscope x:400x for measurement, objective 40x eyepiece 10x
?????????????????????????????????????????? 100x for observation, objective 10x eyepiece 10x
Max. measuring length (μm): 150
Micrometer resolution (μm): 0.5
Testing range:?? 5 HV~2500 HV
Dimension of micro test table: 100X100 mm
Travel range of micro test table: 25X25 mm
Max. Height of the specimen: 65mm
Max. width of the specimen: 85mm
Dimension (mm): 480 x 405 x 290
Net weight (kg): 25


Standard Package:
Main machine: 1
Indenter:???? Micro Vickers indenter x 1
Testing table: Large leveled / medium leveled /V shaped, 1 for eac
Test block:? X-Y stage / fine wire / fork-shaped / thin specimen, 1 for each type
Micrometer eyepiece: 1
Objective: 10x x 1, 40x x 1
Spare fuse: 2
Weight shaft: 1
Weight: 6
Level: 1
Operation instructions: 1
Bulb: 2
