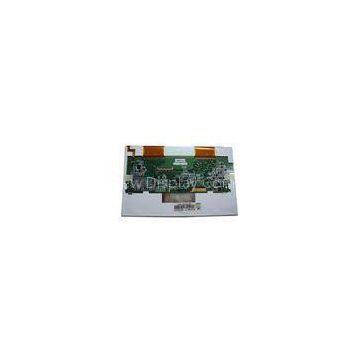

300nits LED Backlight Innolux LCD Screen 800x480 Lcd Panel AT070TN083 V.1
- T/T L/C D/P D/A
- 7 days
You May Like
-
250nits 1280x800 9 Inch Innolux LCD Screen EJ090NA-01B for Digital Camera
-
RGB Vertical Stripe 6.5\" Tft Lcd Panel 800x480 500nits AT065TN14
-
5 Inch OLED Screens 720 1280 High Resolution for DVD Player
-
Flexible Tablet PC Small LCD Panel 320*240 Resolution With Car Navigaiton
-
Custom TM080SDH03-V3 Tablet LCD Panel 800x600 With RGB Vertical Stripe
-
800x600 TianMa 8\" TFT LCD Display TM080SFH01-00 V1 Tablet PC LCD Panel
Product Details
| Brand Name | Innolux | Place of Origin | China | |
| Model Number | AT070TN83 V.1 |
Product Description
Certification:CE ,ROHS
300nits LED Backlight Innolux LCD screen 800x480 lcd panel AT070TN083 V.1
Quick Detail:
1. Lcd size:7\"
2. Resolution: 800X3(RGB)X480
3. Brightness: 300nits
4. Weight: 130
5. Backlight:LED
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
| Screen?Size | 7\" |
| Aspect Ratio | 15:9 |
| Display?Mode | Transmissive |
| Resolution | 800X3(RGB)X480 |
| PPI?(?Pixel?per?inch?) | 133 |
| Module/Panel?Size(mm) | 165 x 104 x 4.4 |
| Active?Area(mm) | 152.4 x 91.44 |
| Dot?Pitch(mm) | 0.0635(W) X 0.1905(H) |
| Viewing?Angle?(Tpy.)θT/θB/θL/θR | 50/70/70/70 |
| Viewing?direction | 6?O\'Clock |
| NTSC | 50% |
| Luminance(nits) | 300 |
| Contrast?Ratio | 500 |
| Response?Time(ms) | 25 |
| Weight?(g) | 130 |
| Interface |
40pin, 18bit RGB connector |
| Operation?Temperature(?℃) | -20~70 |
| Storage?Temperature?(℃) | -30~80 |
| HTHH.(op) | 60℃,90% RH |
| Status | MP |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel\'s brightness.
