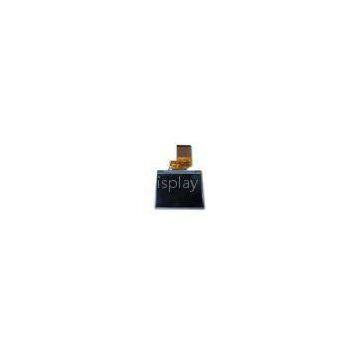

3.5 inch TFT Innolux LCD screen 320nits Touch Screen Display 320x480 ZJ035IA-02K
- T/T L/C D/P D/A
- 7 days
You May Like
-
Customized 1024x600 7 inch Innolux LCD screen HJ070NA-13A 250nits
-
5 inch tablet pc Innolux LCD screen / module 800*480 EJ050NA-01G LED Backlight
-
EJ080NA-05B 8 inch Innolux lcd module 800x600 for digital camera
-
8 inch LVDS Innolux Tablet LCD Panel 1024x600 ZJ080NA-08A 8
-
1024x600 7 inch touch screen display ZJ070NA-01P for Android Tablet PC
-
Innolux 4.3 inch 480x272 lcd module AT043TN25 V1 for visual doorbell
Product Details
| Brand Name | Innolux | Place of Origin | China | |
| Model Number | ZJ035IA-02K |
Product Description
Certification:CE ,ROHS
3.5 inch TFT Innolux LCD screen 320nits Touch Screen Display 320x480 ZJ035IA-02K
Quick Detail:
1. Lcd size:3.5\"
2. Resolution: 320 X 3(RGB) X 480
3. Brightness: 320nits
4. Weight: TBD
5. Backlight: LED
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
| Screen?Size | 3.5\'\' |
| Aspect Ratio | 2:3 |
| Display?Mode | Transmissive |
| Resolution | 320 X 3(RGB) X 480 |
| PPI?(?Pixel?per?inch?) | 166 |
| Module/Panel?Size(mm) | 54.76 x 85.24 x 2.0 |
| Active?Area(mm) | 48.96 x 73.44 |
| Dot?Pitch(mm) | 0.0565(W) x 0.1695(H) |
| Viewing?Angle?(Tpy.)θT/θB/θL/θR | 85/85/85/85 |
| Viewing?direction | Free |
| NTSC | 70% |
| Luminance(nits) | 320 |
| Contrast?Ratio | 700 |
| Response?Time(ms) | 25 |
| Weight?(g) | TBD |
| Interface | 39pin FPC RGB |
| Operation?Temperature(?℃) | -20~70 |
| Storage?Temperature?(℃) | -30~80 |
| HTHH.(op) | 40℃,90% RH |
| Status | DVT |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel\'s brightness.
