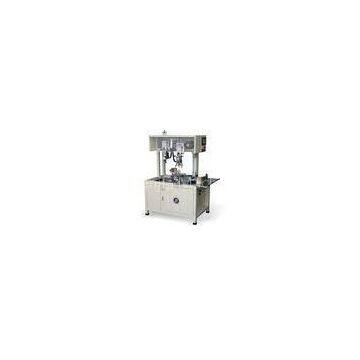

Fully Automatic Power Cord / Wire Coil Winding Machine for Cable Wire Binding
- T/T L/C D/P D/A
- 7 days
You May Like
-
Automatic Cable Wire Terminal Crimping Machine for Single Flat Type Plug Terminal
-
Automatic Wire Cable Stripping Machines / Wire Crimping Connector Machine
-
Automatic Wire Cable Crimping Machine Terminal Plug Assembly Machine
-
Automatic Cable Wire Stripping Machine Wire Stripper Machine , 2000-2400pcs/h
-
Automatic Wire Coil Winding Machine / Equipment with twisting
-
Industrial Auto Wire Cutting and Stripping Machine for Three Core Cables , 2400pcs / hour
Product Details
Brand Name | senjia | Place of Origin | China | |
Product Description
Certification:CE
Fully Automatic Power Cord / Wire Coil Winding Machine for Cable Wire Binding
I.?Description:
The?automatic?winding?machine?SD-168B?newly?developed?by?us?is?an?automation?product?integrating?
functions?of?wire?winding?and?binding.?Due?to?its?simple?mechanical?structure,?the?workers?could?be?
proficient?in?handling?it?after?receiving?a?short-term?training.
3. Quality Features:
The machine can tie and twist the cable automatic. The Head length, Tail length,Total winding length can
be adjussted. Easy to operated and labors are saved and improving output.
4.?Specification:
Model:?SD-168B
Power?supply:?AC220V/50HZ
Air?pressure:?4.5-7.5KG
Volume:?L1100*W665*H1545mm
Weight:?235KG
Parameter table of product:
Model of machine | SD-168B(AC) | Winding speed | 1100-1300PCS/Hour |
Total winding length | 120mm-220mm | ? Length of the wire | MAX.400mm |
Normal Head length | 30mm-150mm | Normal Tail length | 80mm-450mm |
Voltage | AC220V/50HZ | Length of cable tie | Can be adjusted |
Pressure of air source | >4.5KG | Number of turns for tie | Can be adjusted |
Dimension | 1300mm*660mm*1550mm? | Weight | 235KG |
Parameter table of product:
?
Model of machine | SD-168B(DC) | Winding speed | 1300-1700PCS/Hour |
Total winding length | 60mm-120mm | Length of the wire | MAX.400mm |
Normal Head length | 30mm-150mm | Normal Tail length | 30mm-350mm |
Voltage | AC220V/50HZ | Length of cable tie | Can be adjusted |
Pressure of air source | >4.5KG | Number of turns for tie | Can be adjusted |
Dimension | 1100mm*660mm*1550mm? | Weight | 235KG |
